| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
29 pcs
|
29 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Type | |
| Flange Feature | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Finish Thickness | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel |

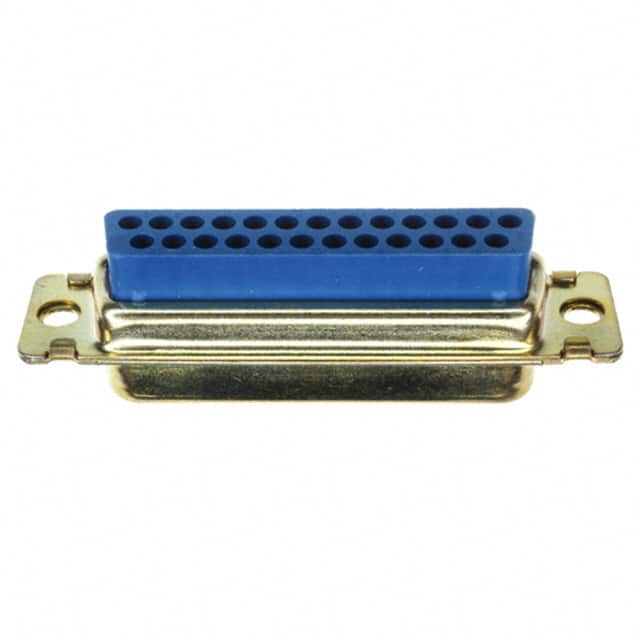

This is a D-Sub connector housing (plug) designed for male contacts, with 25 positions arranged in 2 rows. It features a free hanging (in-line) mounting style and an unthreaded flange feature, typical for cable-to-cable or cable-to-panel applications where a secure but tool-less connection is desired. The shell is made of steel with a yellow chromate plated zinc finish, providing corrosion resistance and grounding. The shell finish thickness is 20µin (0.51µm). The connector layout corresponds to shell size 3 (DB, B). This housing accepts signal contacts and is intended for use with TE Connectivity's D-Sub contact system. It is RoHS3 compliant and has an MSL of 1 (unlimited). Note that contacts are not included; they must be ordered separately. This part is commonly used in industrial control, data communications, and instrumentation applications.
25
Free hanging (in-line) mounting with an unthreaded flange.
2 rows
Steel with yellow chromate plated zinc finish, thickness 20µin (0.51µm).
Shell size 3 (DB, B) connector layout.
Signal contacts; it is a plug for male contacts.
RoHS3 compliant per current data, but confidence is low due to unverified source.
