| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
173 pcs
|
173 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Header Orientation | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Termination Style | |
| Type | |
| Voltage |

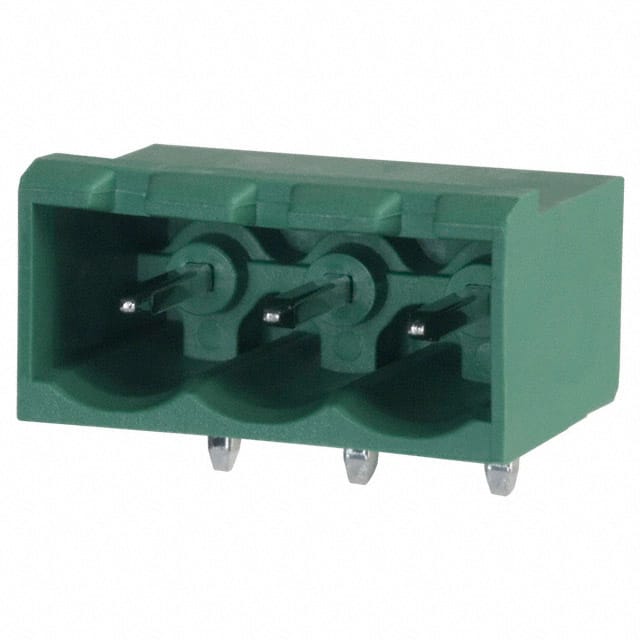

The Phoenix Contact 1757488 is a shrouded (4 side) male pin header designed for terminal block applications. It features 3 positions on a single level with a 5.00mm pitch, making it suitable for discrete wire-to-board connections. The header is oriented at 90° (right angle) and terminates via through hole solder pins for reliable mechanical attachment.
Rated at 300V and 15A, this header supports moderate power distribution and signal routing in industrial control panels, building automation, and other harsh environments. The green color housing is a common indicator for terminal block components. The contact mating finish is tin, providing good conductivity and corrosion resistance.
Mounting is through hole, ensuring secure connection to the PCB. The right angle orientation facilitates compact board layouts and wire dressing. With MSL level 1 and RoHS3 compliance (unverified), the part is suitable for lead-free soldering processes.
It has 3 positions on a single level.
The pitch is 5.00mm (0.197 inches).
It is rated for 15 A.
It is rated for 300 V.
It is a through hole mount component.
The contact mating finish is tin.
The housing is green.
