| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Header Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage |

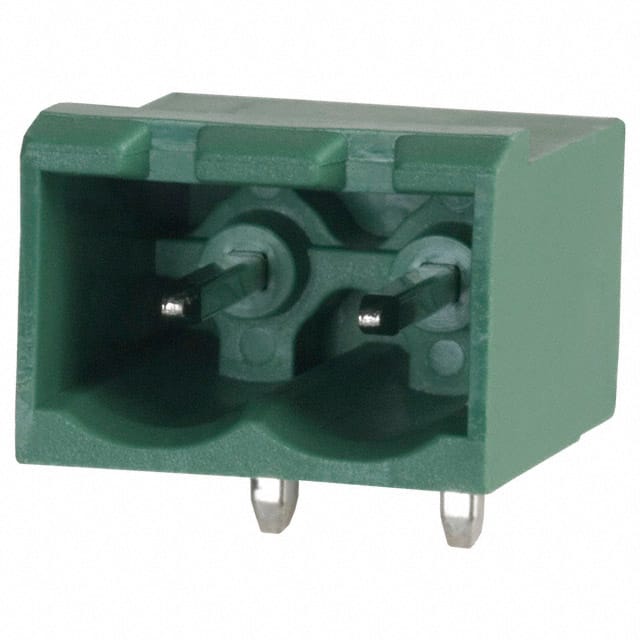

The Phoenix Contact 1757475 is a 2-position terminal block header designed for reliable wire-to-board connections. It features a 5.00mm pitch and a right angle (90°) orientation, making it suitable for space-constrained PCB layouts. The header is shrouded on four sides and uses male pins with tin contact mating finish.
Electrical ratings include 300V voltage and 15A current, supporting moderate power applications. The through hole mounting type with solder termination ensures a robust mechanical and electrical connection. The green housing provides visual identification for polarity or circuit grouping.
This component is commonly used in industrial control systems, power distribution, and automation equipment where secure and organized wiring is required. The 2-position configuration is ideal for simple single-phase connections or signal routing.
The header has 2 positions.
The pitch is 5.00mm (0.197 inches).
The current rating is 15 A.
The voltage rating is 300 V.
It uses through hole mounting.
The header is right angle (90°).
The housing is green.
