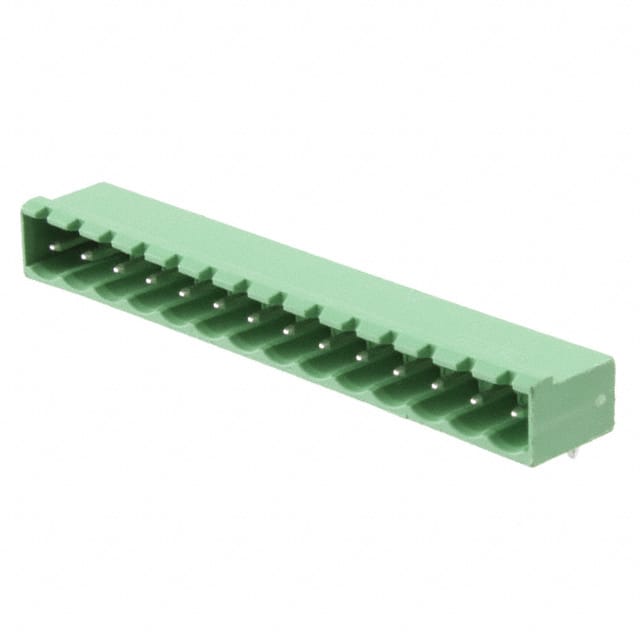

1757365 Phoenix Contact 1757365 is a 14-position, 1-level terminal block header with a 5.08mm pitch. It features through hole mounting, solder termination, and a right angle orientation.
Mfr Part #:

1757365

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1757365 is a 14-position, 1-level terminal block header with a 5.08mm pitch. It features through hole mounting, solder termination, and a right angle orientation.
✓ Total Stock: 26 pcs

1757365 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
26 pcs
On Request
26 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1757365 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Lead Spacing
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1757365 Description

Short technical summary and product information.

The Phoenix Contact 1757365 is a 14-position terminal block header designed for reliable wire-to-board connections. This shrouded header (4 side) provides robust protection for the male pins.



Key specifications include a pitch of 5.08mm, a voltage rating of 300V, and a current rating of 15A. The header features a green housing and tin-plated contacts for reliable conductivity.



The component uses a through hole mounting style with solder termination and a right angle (90°) orientation, making it suitable for compact PCB layouts where space is constrained.

1757365 Quick Information

Product Type: Terminal Block Header
Canonical Name: Terminal Block Header, 14 Position, 1 Level, 5.08mm Pitch, Through Hole, Solder, Right Angle
Subcategory: Shrouded Header

1757365 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1757365 Features

  • 14 positions with 5.08mm pitch spacing.
  • Rated for 300V and 15A operation.
  • Right angle through hole mounting design.
  • Shrouded header with 4 side protection.
  • Tin plated contacts for reliable mating.

1757365 Applications

  • Ideal for industrial control panel wiring.
  • Used in power distribution applications.
  • Suitable for sensor and actuator connections.
  • Common in building automation systems.

1757365 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the pitch of the 1757365 terminal block header?

The pitch is 5.08mm (0.200").

How many positions does the 1757365 header have?

It has 14 positions total, across 1 level.

What is the voltage and current rating for this Phoenix Contact header?

The voltage rating is 300 V and the current rating is 15 A.

What mounting style does the 1757365 use?

It uses through hole mounting with solder termination.
