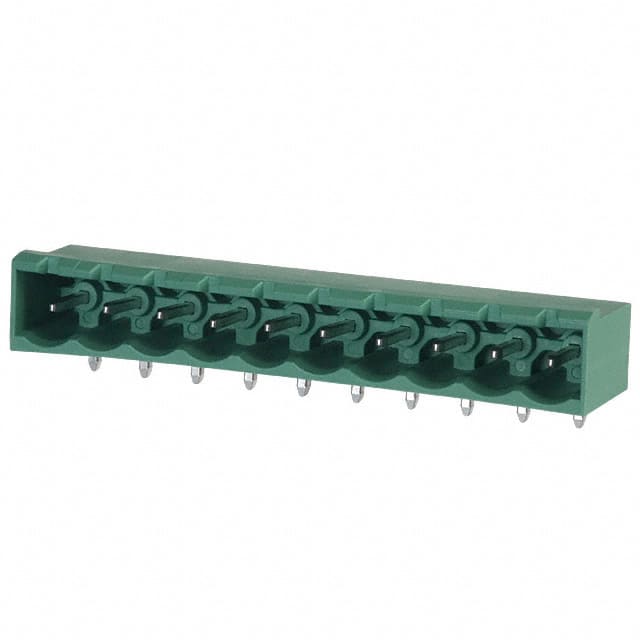

1757323 Terminal block header with 10 positions, 5.08mm pitch, rated 15A and 300V. Through hole mounting with solder termination, right angle orientation.
Mfr Part #:

1757323

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Terminal block header with 10 positions, 5.08mm pitch, rated 15A and 300V. Through hole mounting with solder termination, right angle orientation.
✓ Total Stock: 24 pcs

1757323 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
Akira Global ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request 2428 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1757323 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1757323 Description

Short technical summary and product information.

The Phoenix Contact 1757323 is a 10-position terminal block header designed for reliable wire-to-board connections. It features a 5.08mm pitch and is rated for 15A and 300V, making it suitable for power distribution and control applications. The header has male pins with a shrouded (4 side) design for enhanced protection and alignment. It is mounted via through hole and terminated with solder, ensuring a secure mechanical and electrical connection. The right angle orientation allows for compact PCB layouts, ideal for space-constrained enclosures. The green housing and tin contact finish provide durability and corrosion resistance. This component is part of the headers, plugs and sockets category, commonly used in industrial automation, building technology, and power supply systems.

1757323 Quick Information

Product Type: Terminal Block Header
Canonical Name: Header, Male Pins, Shrouded (4 Side), 10 Position, 5.08mm Pitch, Through Hole, Solder
Subcategory: Headers

1757323 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1757323 Features

  • 10 position terminal block header.
  • 5.08mm pitch for wire connections.
  • Rated for 15A and 300V.
  • Through hole mounting with solder.
  • Right angle orientation for compact design.

1757323 Applications

  • Used in industrial control panels.
  • Ideal for power distribution systems.
  • Suitable for PCB mounting in tight spaces.
  • Common in building automation equipment.

1757323 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

This header has 10 positions.

What is the pitch of this terminal block header?

The pitch is 5.08mm (0.200 inches).

What is the current rating of the 1757323?

The current rating is 15A.

What is the voltage rating of this header?

The voltage rating is 300V.

What is the mounting type for this component?

The mounting type is Through Hole.

What is the termination style?

The termination style is Solder.

What is the header orientation?

The header orientation is 90°, Right Angle.
