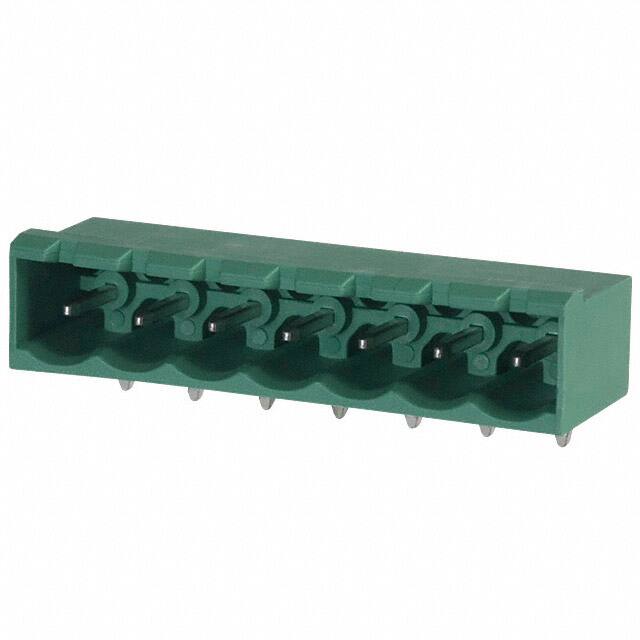

1757297 The Phoenix Contact 1757297 is a 7-position, 5.08mm pitch, right angle header with shrouded male pins. It features through hole solder termination, tin contacts, and a green PA insulating material rated UL 94 V0.
Mfr Part #:

1757297

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
The Phoenix Contact 1757297 is a 7-position, 5.08mm pitch, right angle header with shrouded male pins. It features through hole solder termination, tin contacts, and a green PA insulating material rated UL 94 V0.
✓ Total Stock: 40 pcs

1757297 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1757297 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Country of Origin
Current
Header Orientation
Height
Hole Diameter
Lead Spacing
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Tape & Reel
Termination Style
Type
Voltage
Width
View Similar Products (0)

1757297 Description

Short technical summary and product information.

The Phoenix Contact 1757297 (MSTBA 2,5/ 7-G-5,08) is a 7-position base strip header designed for wave soldering. It belongs to the MSTBA series of printed-circuit board headers with a 5.08mm pitch and right angle orientation.



Electrical specifications include a rated voltage of 320V (III/2) and 400V (II/2), a rated surge voltage of 4kV, and a nominal current of 12A. The insulating material is polyamide (PA) with a flammability rating of UL 94 V0, and the contact surface is tin.



Mechanically, the header measures 37.48mm wide, 12mm long, and 12.1mm high, with a constructional height of 8.6mm. The solder pins are 3.5mm long with 1x1mm cross-section, requiring a 1.4mm hole diameter. The product is colored green.



Compliance markings include RoHS (unverified) and UL 94 V0. The part is manufactured in Germany and packed in units of 1 piece. Custom tariff number is 85366990.

1757297 Quick Information

Product Type: Terminal Block Header
Series: MSTBA 2,5/..-G
Canonical Name: Phoenix Contact MSTBA 2,5/ 7-G-5,08 Header, 7 Position, 5.08mm Pitch, Right Angle, Through Hole
Subcategory: Headers, Plugs and Sockets

1757297 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1757297 Features

  • 7 positions with 5.08mm pitch.
  • Right angle orientation for PCB mounting.
  • Rated voltage 320V (III/2) and 12A.
  • Through hole wave solder termination.
  • Green PA insulating material, UL 94 V0.

1757297 Applications

  • Ideal for industrial control panel wiring.
  • Used in power distribution applications.
  • Suitable for PCB-to-wire connections.

1757297 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

7 positions.

What is the pitch of this header?

5.08mm (0.200 inches).

What is the current rating of this header?

Nominal current is 12A, with a maximum load current of 12A.

What is the voltage rating of this header?

Rated voltage (III/2): 320V, (III/3): 250V, (II/2): 400V.

What is the mounting type of this header?

Through hole, designed for wave soldering.

What is the insulating material used?

Polyamide (PA) with insulating material group I.

What is the flammability rating of this header?

UL 94 V0.
