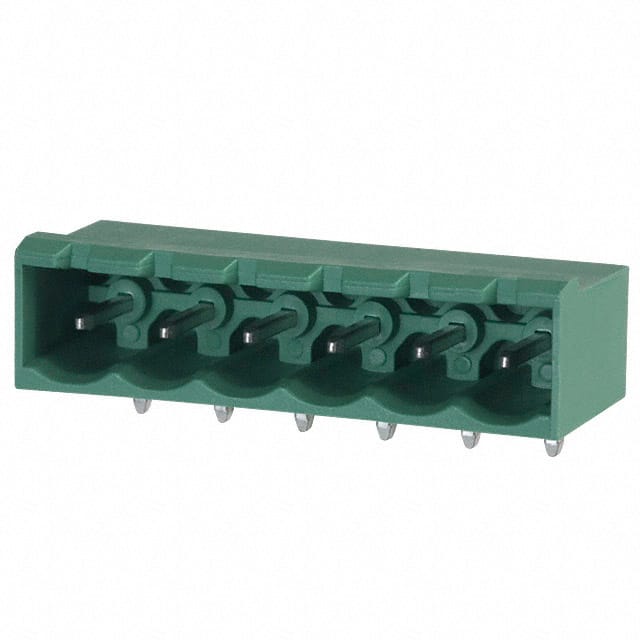

1757284 Terminal block header with 6 positions, single level, 5.08mm pitch, right angle orientation, through hole solder mounting, and shrouded (4 side) design.
Mfr Part #:

1757284

Available from 3 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Terminal block header with 6 positions, single level, 5.08mm pitch, right angle orientation, through hole solder mounting, and shrouded (4 side) design.
✓ Total Stock: 454 pcs

1757284 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
402 pcs
On Request
402 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
Akira Global ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request 1922175G On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1757284 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Lead Spacing
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1757284 Description

Short technical summary and product information.

This terminal block header, model 1757284 from Phoenix Contact, is a 6-position, single-level shrouded header designed for through hole mounting with a right-angle orientation. It features a 5.08mm (0.200 inch) pitch, making it suitable for standard terminal block interconnects. The header is equipped with male pins and a tin contact mating finish for reliable conductivity.



Rated for 300V and 15A, this component is housed in a green insulator and uses solder termination. The shrouded design (4 side) provides mechanical protection and polarization for secure mating with compatible plug connectors. This header is RoHS3 Compliant, REACH unaffected, and has an MSL of 1 Unlimited, though these compliance details are unverified.

1757284 Quick Information

Product Type: Terminal Block Header
Canonical Name: Terminal Block Header, 6 Position, 1 Level, 5.08mm Pitch, Right Angle, Through Hole, Shrouded (4 Side)
Subcategory: Terminal Block Header

1757284 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1757284 Features

  • 6 positions, single level, 5.08mm pitch.
  • Right angle through hole mounting.
  • Shrouded header with male pins.
  • Tin plated contacts for reliable mating.
  • Rated for 300V and 15A operation.

1757284 Applications

  • Industrial control panel wiring.
  • Power distribution terminal blocks.
  • Automation and process control systems.
  • Building automation and HVAC equipment.

1757284 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the pitch of this terminal block header?

The pitch is 5.08mm (0.200 inches).

How many positions does this header have?

It has 6 positions with a single level.

What is the voltage and current rating?

Rated for 300V and 15A.

What is the mounting style?

Through hole mounting with a right angle orientation.

What type of header is this?

A shrouded (4 side) header with male pins, 90b0 right angle.

What is the contact plating material?

Tin contact mating finish.

1757284 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
796866-6
796866-6
TE Connectivity
TE Connectivity 796866-6 is a 6-position, 5.08mm pitch, right angle, through-hole terminal block header with shrouded male pins. Rated for 15A and 300V.
