1757242 Terminal block header with 2 positions, 5.08mm pitch, right angle orientation. Through hole mounting with solder termination.
Mfr Part #:

1757242

Available from 4 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Terminal block header with 2 positions, 5.08mm pitch, right angle orientation. Through hole mounting with solder termination.
✓ Total Stock: 2,723 pcs

1757242 Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1757242 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Tape & Reel
Termination Style
Type
Voltage
View Similar Products (0)

1757242 Description

Short technical summary and product information.

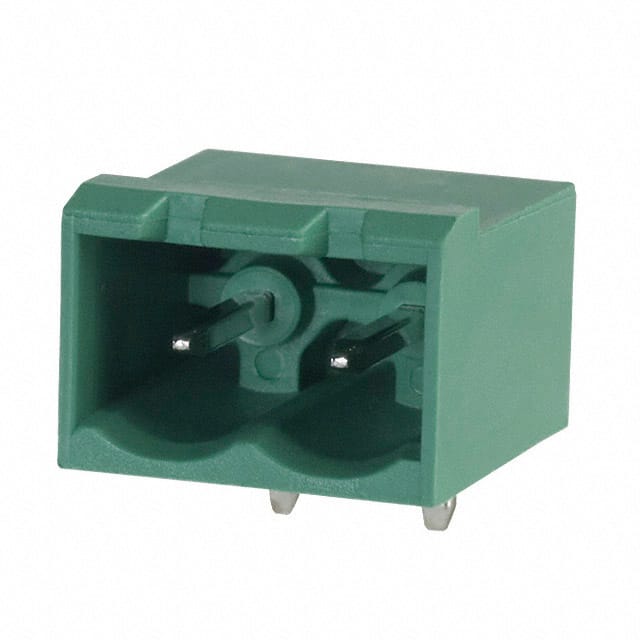

The Phoenix Contact 1757242 is a terminal block header with male pins, shrouded on four sides. It features 2 positions arranged in a single level with a 5.08mm pitch. The header is oriented at a 90° right angle and designed for through-hole mounting with solder termination. This header accepts 15A of current and 300V, with an operating temperature range down to -40°C. The green housing and tin-plated contacts make it suitable for industrial control and power distribution applications. The shrouded design provides protection and alignment for mating plug connectors. The 5.08mm pitch is common for standard terminal block interfaces.

1757242 Quick Information

Product Type: Terminal Block Header
Canonical Name: Terminal Block Header, Male Pins, Shrouded (4 Side), 2 Positions, 5.08mm Pitch, Right Angle, Through Hole
Subcategory: Headers

1757242 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1757242 Features

  • 2 positions in single level.
  • 5.08mm pitch for standard interfacing.
  • Right angle orientation for space saving.
  • Rated 15A and 300V for industrial use.
  • Through hole mounting with solder pins.

1757242 Applications

  • Interfaces with mating plug connectors.
  • Mounts to PCB for wire termination.
  • Used in power distribution circuits.

1757242 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

2 positions in a single level.

What is the pitch of this terminal block header?

5.08mm (0.200 inches).

What is the current rating?

15 A.

What is the voltage rating?

300 V.

What is the mounting type?

Through hole with solder termination.

What is the header orientation?

Right angle (90°).

What is the contact finish?

Tin.
