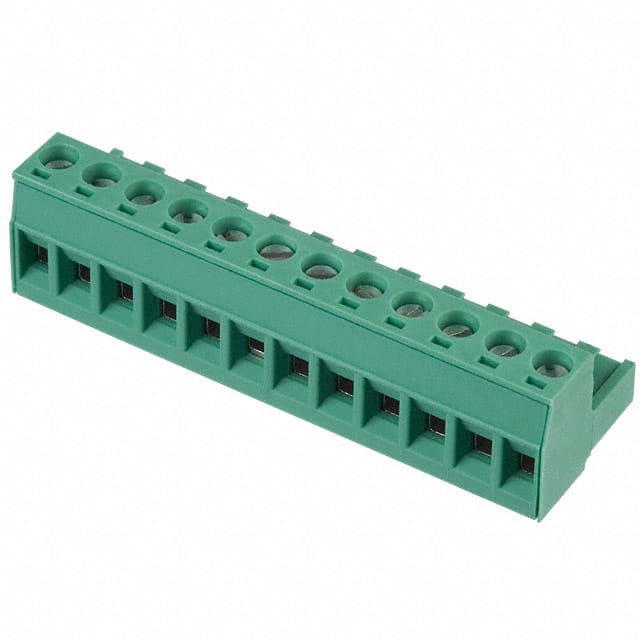

1757116 Phoenix Contact 1757116 plug connector with 12 positions, 5.08mm pitch, screw-cage clamp termination, and female socket contacts rated at 15A and 300V.
Mfr Part #:

1757116

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1757116 plug connector with 12 positions, 5.08mm pitch, screw-cage clamp termination, and female socket contacts rated at 15A and 300V.
✓ Total Stock: 61 pcs

1757116 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
32 pcs
On Request
32 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
Partservice ✓
Non-Authorised Inventory information
29 pcs
On Request
29 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1757116 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1757116 Description

Short technical summary and product information.

The Phoenix Contact 1757116 is a 12-position terminal block plug designed for reliable wire-to-board connections in industrial control and automation systems.



It features a 5.08mm (0.200 inch) pitch and uses a screw-rising cage clamp termination method. The wire range is 0.2 to 2.5 mm², making it suitable for a variety of signal and power wiring applications. The plug has a 180-degree wire entry and includes retention latches on the non-wire side for secure mating.



The housing is green and rated for 15A at 300V. The contact mating finish is tin, ensuring good conductivity and corrosion resistance. The plug is designed for free-hanging (in-line) mounting, simplifying installation without a fixed panel or PCB fixture.

1757116 Quick Information

Product Type: Terminal Block Plug
Series: COMBICON MSTB
Canonical Name: Phoenix Contact 1757116 TERM BLOCK PLUG 12POS STR 5.08MM
Subcategory: Headers, Plugs and Sockets

1757116 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1757116 Features

  • 12-position plug with 5.08mm pitch.
  • Screw-rising cage clamp termination.
  • Rated 15A at 300V.
  • Accepts 0.2 to 2.5 mm² wire.
  • Green housing with retention latches.

1757116 Applications

  • Industrial control panel wiring.
  • Automation system field connections.
  • Power distribution in junction boxes.

1757116 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 1757116 terminal block plug have?

It has 12 positions.

What is the pitch of the Phoenix Contact 1757116?

The pitch is 5.08mm (0.200 inch).

What is the voltage and current rating for this plug?

It is rated for 300V and 15A.

What type of terminal connection does it use?

It uses screw-rising cage clamp termination.

What wire gauge can be used with the 1757116?

It accepts 0.2 to 2.5 mm² wire.

Is the 1757116 a plug or a header?

It is a plug with female sockets.
