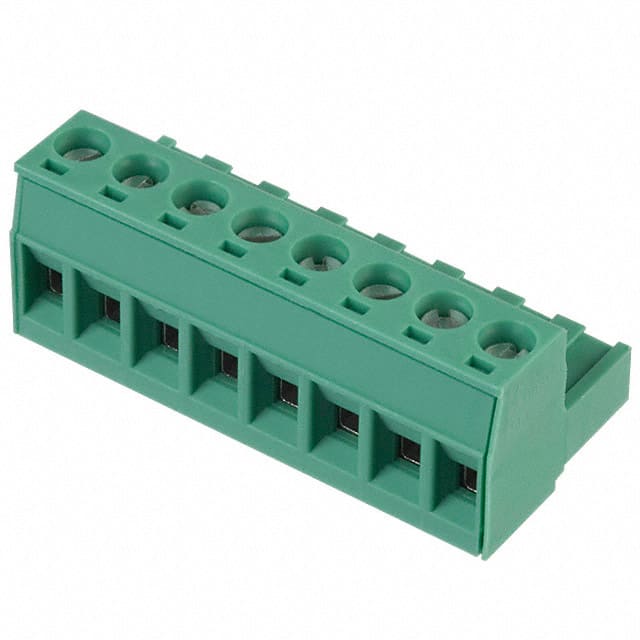

1757077 Phoenix Contact 1757077 terminal block plug with 8 positions, 5.08mm pitch, 12A/250V rating, screw cage clamp termination, in green.
Mfr Part #:

1757077

Available from 3 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1757077 terminal block plug with 8 positions, 5.08mm pitch, 12A/250V rating, screw cage clamp termination, in green.
✓ Total Stock: 13 pcs

1757077 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
Emiteli ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1757077 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Lead Spacing
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
Tape & Reel
Termination Style
Type
Voltage
Weight
Wire Gauge or Range
View Similar Products (0)

1757077 Description

Short technical summary and product information.

The Phoenix Contact 1757077 is an 8-position terminal block plug from the MSTB 2,5 series. It features a 5.08mm pitch and uses a screw-rising cage clamp termination for secure wire connections. The plug is rated for 12A nominal current (per IEC) and 250V nominal voltage, with a 4kV rated surge voltage (III/3). It accepts solid or stranded conductors from 0.2 to 2.5 mm² (24-12 AWG). The insulating material is PA with UL94 V0 flammability rating. The green plug is designed for free-hanging (in-line) mounting and includes retention latches for secure mating. It has a stripping length of 7mm and a tightening torque of 0.5-0.6 Nm (M3 screw thread). This plug is RoHS compliant and weighs 0.01376 kg. Standard packaging is 50 pieces per pack.

1757077 Quick Information

Product Type: Terminal Block Plug
Canonical Name: Phoenix Contact MSTB 2,5/ 8-ST-5,08 Terminal Block Plug, 8 Positions, 5.08mm Pitch
Subcategory: Screw Terminal Block

1757077 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1757077 Features

  • 8 positions with 5.08mm pitch.
  • Screw-rising cage clamp termination.
  • Rated 12A nominal current and 250V voltage.
  • Accepts 24-12 AWG solid or stranded wire.
  • UL94 V0 flammability rated PA insulation.

1757077 Applications

  • Used in industrial control panels and automation systems.
  • Suitable for power supply and signal wiring in building technology.
  • Ideal for applications requiring a reliable screw connection.
  • Common in PLC and I/O system wiring.

1757077 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1757077 terminal block plug have?

8 positions.

What is the pitch of the 1757077?

5.08 mm (0.200").

What is the current rating of the 1757077?

12 A nominal (per IEC), with a maximum load current of 12 A at 2.5 mm². Note: existing database shows 15 A, but datasheet specifies 12 A as nominal.

What is the voltage rating of the 1757077?

250 V nominal (per IEC), with rated voltages of 320 V (III/2) and 630 V (II/2). Note: existing database shows 300 V, but datasheet specifies 250 V as nominal.

What is the mounting type of the 1757077?

Free hanging (in-line).

What type of termination does the 1757077 use?

Screw - rising cage clamp.

What wire gauge does the 1757077 accept?

24-12 AWG (0.2-2.5 mm² solid or stranded).
