| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Mating Finish | |
| Current | |
| Current Rating | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge or Range |

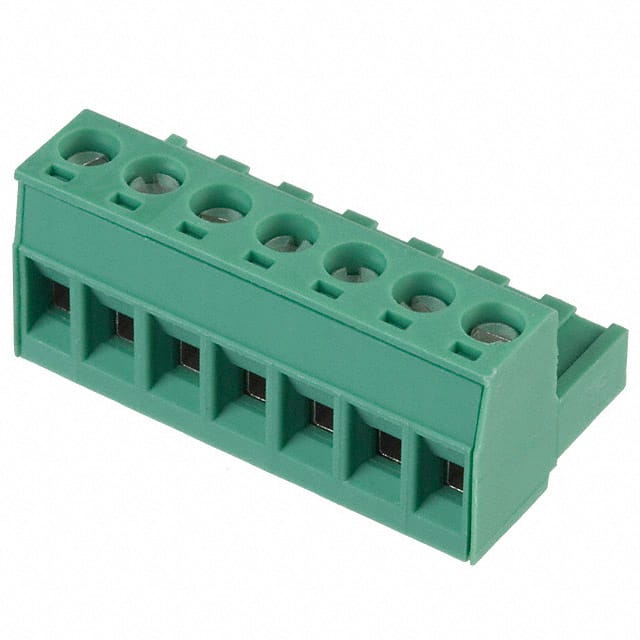

The Phoenix Contact 1757064 is a 7-position terminal block plug with female sockets, designed for use in industrial control and automation systems. It features a 5.08mm (0.200 inch) pitch and uses a screw rising cage clamp termination for secure wire connections. The plug accepts wire sizes from 0.2 to 2.5mm² and is rated for 15A at 300V.
Mounting is free hanging (in-line) with a 180° wire entry angle, simplifying installation in tight spaces. The housing is green and includes retention latches on the non-wire side to ensure a reliable connection with the mating header. Contact surfaces are finished with tin for good conductivity and corrosion resistance.
This plug is suitable for applications requiring a compact, high-density interconnect solution. It is commonly used in power distribution, sensor/actuator wiring, and building automation systems. The screw termination provides a vibration-resistant connection suitable for industrial environments.
It has 7 positions.
The pitch is 5.08mm (0.200 inches).
It is rated for 15A.
It is rated for 300V.
It uses free hanging (in-line) mounting.
It uses screw - rising cage clamp termination.
It supports wire sizes from 0.2 to 2.5mm².
