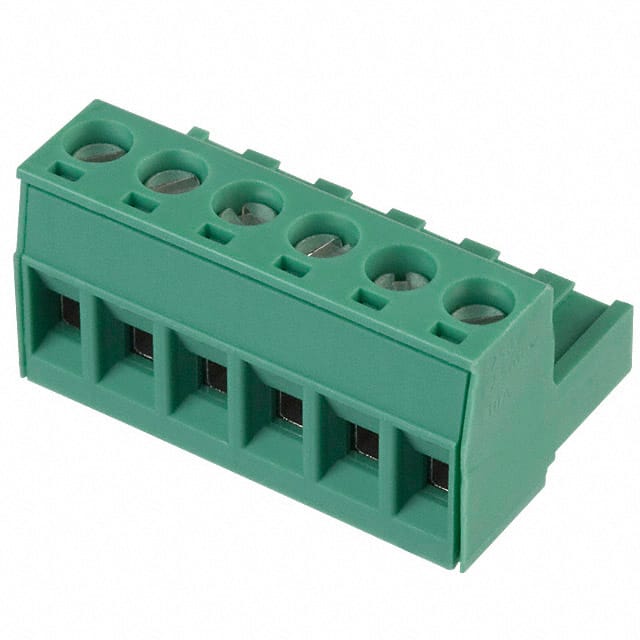

1757051 Phoenix Contact 1757051 is a 6-position terminal block plug with a 5.08mm pitch, rated 15A at 300V, and features a screw rising cage clamp termination.
Mfr Part #:

1757051

Available from 3 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1757051 is a 6-position terminal block plug with a 5.08mm pitch, rated 15A at 300V, and features a screw rising cage clamp termination.
✓ Total Stock: 98 pcs

1757051 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
82 pcs
On Request
82 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
Partservice ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1757051 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Lead Spacing
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1757051 Description

Short technical summary and product information.

The Phoenix Contact 1757051 is a terminal block plug designed for connecting 6 wires in a single level. This plug features female sockets and is configured for free hanging (in-line) mounting with a 180-degree wire entry angle, making it suitable for cable-to-board or cable-to-cable connections.



Key electrical ratings include a current of 15 A and a voltage of 300 V, with wire accommodation ranging from 0.2 to 2.5 mm². The termination uses a screw rising cage clamp mechanism, providing a reliable and secure connection for solid or stranded wires.



The plug body is green, and the contact mating surface is finished with tin. Retention latches on the non-wire side help ensure secure mating with the header, preventing accidental disconnection in applications subject to vibration or movement.

1757051 Quick Information

Product Type: Terminal Block Plug
Canonical Name: Phoenix Contact 1757051 Terminal Block Plug, 6 Position, 5.08mm Pitch, Free Hanging, Screw Rising Cage Clamp
Subcategory: Terminal Block Plug

1757051 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1757051 Features

  • 6-position plug with 5.08mm pitch.
  • Rated 15A current and 300V voltage.
  • Screw rising cage clamp termination.
  • Free hanging (in-line) mounting style.
  • Retention latches for secure mating.

1757051 Applications

  • Suitable for industrial control panel wiring.
  • Used in power distribution and signal connections.
  • Ideal for applications requiring a reliable plug connection.
  • Common in building automation and machinery.

1757051 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 1757051 terminal block plug have?

It has 6 positions in a single level.

What is the pitch of the 1757051 plug?

The pitch is 5.08mm (0.200 inches).

What is the current and voltage rating of this plug?

It is rated for 15 Amps at 300 Volts.

What mounting type is the 1757051 plug?

It is a free hanging (in-line) plug.

What termination style does the 1757051 use?

It uses a screw rising cage clamp.

What wire gauge range does the 1757051 accept?

It accepts wire from 0.2 to 2.5 mm².
