Mfr Part #:

1757035

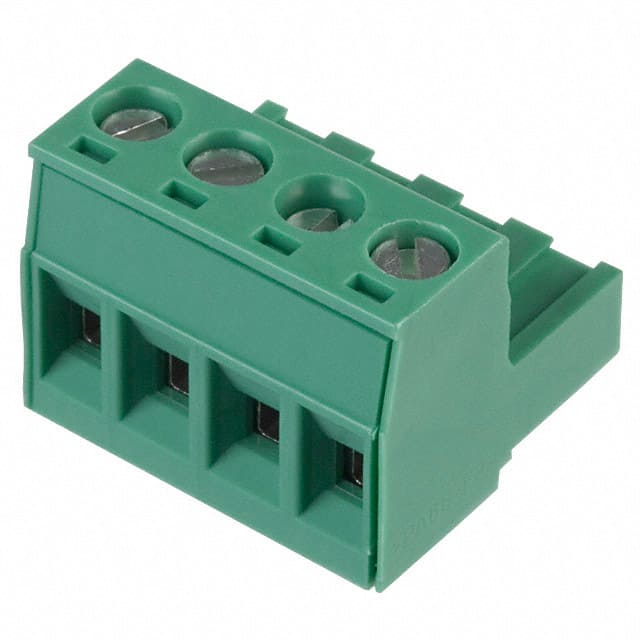

4-position terminal block plug with 5.08mm pitch, rated for 15A and 300V. Features screw-cage clamp termination and retention latches for secure mating.

✓ Total Stock: 3,051 pcs

1757035 Available from 4 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	2,832 pcs On Request	2832 pcs	On Request	1	6	On Request	24+	On Request	On Request
Braun Electronic Components ✓ Non-Authorised Inventory information	118 pcs On Request	118 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Speed Components Ltd ✓ Non-Authorised Inventory information	100 pcs On Request	100 pcs	On Request	1	On Request	On Request	12+	On Request	On Request
Emiteli ✓ Non-Authorised Inventory information	1 pcs On Request	1 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

1757035 Description

Short technical summary and product information.

The Phoenix Contact 1757035 is a 4-position terminal block plug with a pitch of 5.08mm (0.200 inches). It features female socket contacts with a tin mating finish and is designed for free hanging (in-line) mounting. The plug uses a screw - rising cage clamp termination method, accepting wire gauges from 0.2 to 2.5 mm².

This plug is rated for 15 Amps and 300 Volts, making it suitable for industrial control and power distribution applications. The 180° wire entry orientation simplifies wiring in tight spaces. Retention latches (non-wire side) provide mechanical security when mated with corresponding headers.

The housing is green, standard for Phoenix Contact terminal blocks. The part is RoHS3 compliant and has an MSL of 1 (unlimited floor life). This plug is a direct replacement for Digi-Key part number 277-1013-ND.

1757035 Quick Information

Product Type: Terminal Block Plug

Canonical Name: Phoenix Contact 1757035 Terminal Block Plug, 4 Position, 5.08mm Pitch, Free Hanging

Subcategory: Headers, Plugs and Sockets

1757035 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

1757035 Features

4-position terminal block plug with 5.08mm pitch.
Screw rising cage clamp termination for secure wiring.
Rated for 15A and 300V electrical loads.
Free hanging mounting for in-line applications.
Retention latches for secure mating connection.

1757035 Applications

Industrial control panel wiring and distribution.
Power supply connections in automation systems.
Sensor and actuator wiring in factory environments.
Building automation and HVAC control circuits.

1757035 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the Phoenix Contact 1757035 have?

4 positions.

What is the pitch of the 1757035 terminal block plug?

5.08mm (0.200 inches).

What is the current rating of the 1757035?

15 Amps.

What is the voltage rating of the 1757035?

300 Volts.

What mounting type does the 1757035 use?

Free Hanging (In-Line).

What termination style does the 1757035 use?

Screw - Rising Cage Clamp.

What wire gauge range does the 1757035 accept?

0.2 to 2.5 mm².

Category	Headers, Plugs and Sockets
Manufacturer Name	Phoenix Contact
Color	Green
Contact Mating Finish	Tin
Current	15 A
Features	Retention Latches (Non-Wire Side)
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	4
Pitch	5.08mm (0.200")
Plug Wire Entry	180°
Positions Per Level	4
Tape & Reel	No
Termination Style	Screw - Rising Cage Clamp
Type	Plug, Female Sockets
Voltage	300 V
Wire Gauge or Range	0.2-2.5mm²
