| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
499 pcs
|
499 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Current Rating | |
| Features | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Gauge or Range |

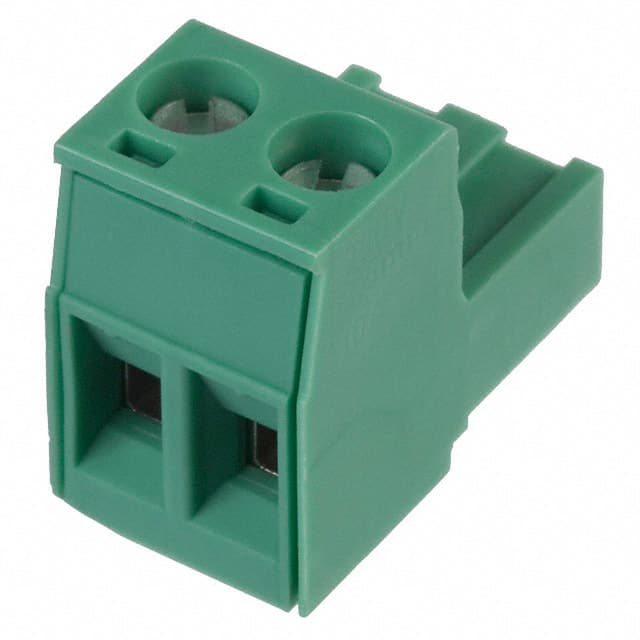

The Phoenix Contact 1757019 is a terminal block plug designed for use in interconnect and wiring applications. It features a 2-position configuration with female sockets arranged in a single level at a 5.08mm pitch (0.200 inches). The plug uses a screw-rising cage clamp termination method, providing a secure and reliable wire connection. It accepts wire sizes from 0.2 to 2.5 mm².
This component is rated for 300V and 15A, making it suitable for a wide range of industrial control and power distribution systems. The plug is mounted using a free hanging (in-line) style, allowing for flexible installation without the need for a fixed panel mount. The green housing and tin-plated contacts ensure reliable conductivity and corrosion resistance. Retention latches on the non-wire side provide additional mechanical security when mated with a corresponding header.
The plug has 2 positions.
The pitch is 5.08mm (0.200 inches).
It is rated for 300V and 15A.
It uses free hanging (in-line) mounting.
It uses screw-rising cage clamp termination.
