| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
125 pcs
|
125 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Header Orientation | |
| Lead Spacing | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage |

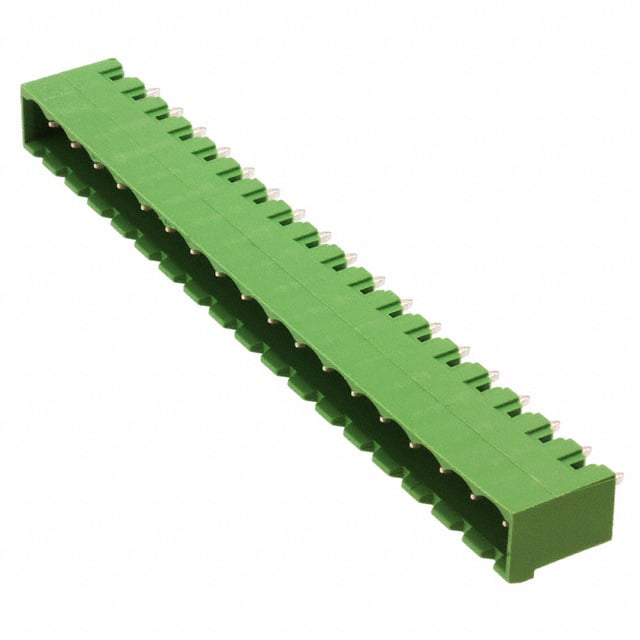

The Phoenix Contact 1755891 is a shrouded header (male pins) designed for use in terminal block systems. It features 18 positions arranged in a single level with a 5.08mm pitch, providing a compact yet high-density connection solution. The header is oriented vertically and mounts via through-hole solder termination, making it suitable for PCB designs requiring a vertical connection interface.
Electrical ratings include 300V voltage and 12A current, typical for industrial control and automation applications. The contact mating finish is tin, ensuring reliable conductivity and corrosion resistance. The green color housing indicates standard Phoenix Contact coloration for identification.
The shrouded design provides protection and guides mating plug insertion. This component is listed as RoHS3 compliant and has an MSL of 1, indicating no moisture sensitivity limitation. It is commonly used in PLC, I/O systems, and power distribution.
18 positions.
5.08mm.
12 A.
300 V.
Through hole.
Tin.
Vertical.
