1755875 Phoenix Contact 1755875 is a 16-position, 5.08mm pitch, shrouded header with vertical orientation, rated for 12A and 320V (III/2).
Mfr Part #:

1755875

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1755875 is a 16-position, 5.08mm pitch, shrouded header with vertical orientation, rated for 12A and 320V (III/2).
✓ Total Stock: 27 pcs

1755875 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
27 pcs
On Request
27 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1755875 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Height
Hole Diameter
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Tape & Reel
Termination Style
Type
Voltage
Width
View Similar Products (0)

1755875 Description

Short technical summary and product information.

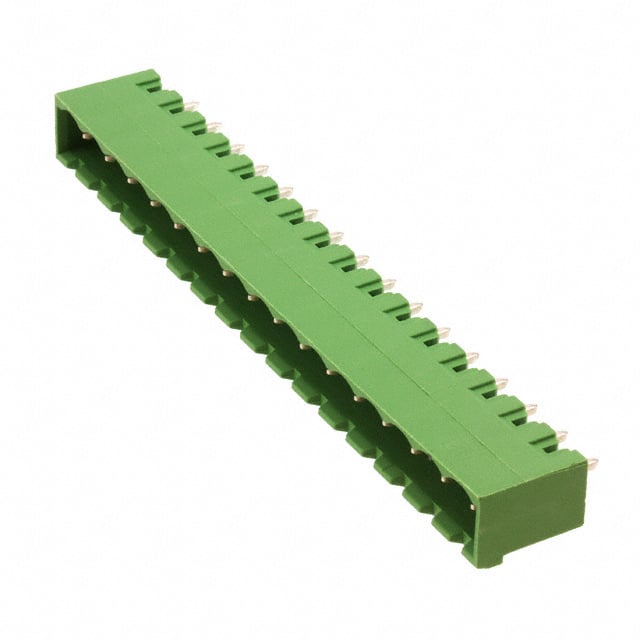

The Phoenix Contact 1755875 (MSTBVA 2,5/16-G-5,08) is a 16-position, single-level, shrouded header with male pins. It features a 5.08mm pitch and a vertical orientation, designed for through-hole mounting with solder termination. The header is rated for a nominal current of 12A and a rated voltage of 320V (III/2) with a rated surge voltage of 4kV. The insulating material is PA with a flammability rating of V0. The contact mating finish is tin, and the housing is green. Dimensions include a length of 8.6mm, width of 83.28mm, and height of 15.9mm. The solder pin length is 3.9mm with pin dimensions of 1x1mm. This header is part of the MSTBVA 2,5/..-G series and is suitable for wave soldering.

1755875 Quick Information

Product Type: Header, Male Pins, Shrouded (4 Side)
Series: MSTBVA 2,5
Canonical Name: Phoenix Contact MSTBVA 2,5/16-G-5,08 Header, Male Pins, Shrouded (4 Side), 16 Position, 5.08mm Pitch, Through Hole, Vertical
Subcategory: Headers, Plugs and Sockets

1755875 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1755875 Features

  • 16 positions with 5.08mm pitch.
  • Rated for 12A nominal current.
  • Rated voltage up to 320V (III/2).
  • Vertical orientation, through-hole mounting.
  • Shrouded header with tin-plated contacts.

1755875 Applications

  • Used in PCB terminal block connections.
  • Suitable for industrial control systems.
  • Ideal for power distribution applications.
  • Common in automation and machinery.

1755875 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1755875 have?

It has 16 positions.

What is the pitch of this header?

The pitch is 5.08mm.

What is the current rating?

The nominal current is 12A.

What is the voltage rating?

The rated voltage is 320V (III/2), 250V (III/3), and 630V (II/2).

What is the mounting type?

Through hole.

What is the color of the housing?

Green.

What is the flammability rating?

V0 per UL 94.
