| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Header Orientation | |
| Lead Spacing | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage |

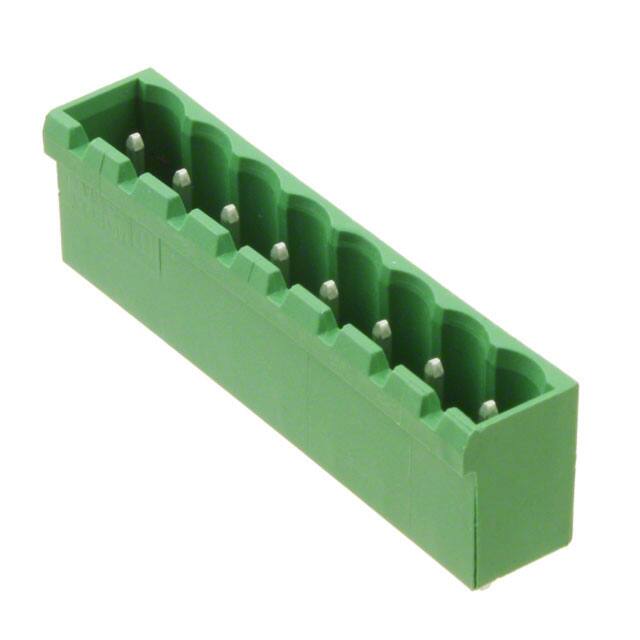

The Phoenix Contact 1755794 is an 8-position, single-level terminal block header designed for reliable wire-to-board connections. This shrouded header features male pins arranged in a vertical orientation with a 5.08mm pitch, providing secure mating with compatible plugs.
Rated for 300V and 12A, this header is suitable for power distribution and industrial control applications. The green housing and tin-plated contacts ensure durability and good solderability in through hole mounting.
The shrouded design with 4-side protection enhances operator safety and prevents misalignment during plug insertion. Its compact 8-position layout saves PCB space while offering a robust interface for demanding environments.
It has 8 positions in a single level.
The pitch is 5.08mm (0.200 inches).
Rated at 300V.
Rated at 12A.
Through hole mounting with solder termination.
Tin (contact mating finish).
Header, Male Pins, Shrouded (4 Side).
