| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

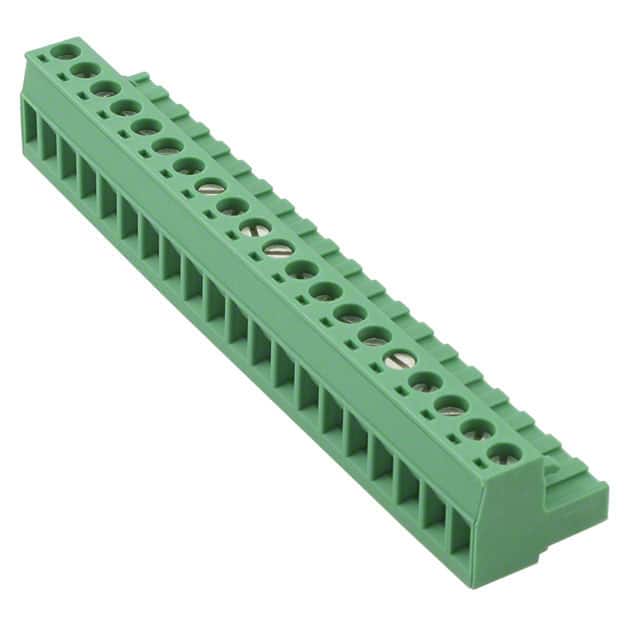

The Phoenix Contact 1754805 is a plug component from the MSTB 2,5/..-ST series, offering 20 positions with a 5 mm pitch for secure and organized wiring. It is a free hanging (in-line) plug with a screw connection using a rising cage clamp termination style.
The plug is rated for a nominal current of 12 A (IEC) and a maximum load current of 12 A with 2.5 mm² conductor. The UL rating is 15 A for Use Group B/D. The rated voltage (III/2) is 320 V, with a UL rating of 300 V. The rated surge voltage is 4 kV.
The housing is made of green PA (polyamide) insulating material with a UL 94 V0 flammability rating. The contact mating finish is tin. It accepts solid and stranded conductors from 0.2 to 2.5 mm² (24-12 AWG). The screw thread is M3 with a tightening torque of 0.5-0.6 Nm, and the stripping length is 7 mm. The plug includes retention latches on the non-wire side.
20 positions.
5.00 mm.
12 A (IEC) and 15 A (UL).
320 V (IEC) and 300 V (UL).
Free hanging (in-line).
0.2-2.5 mm² (24-12 AWG) solid or stranded.
UL 94 V0.
