| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
42 pcs
|
42 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

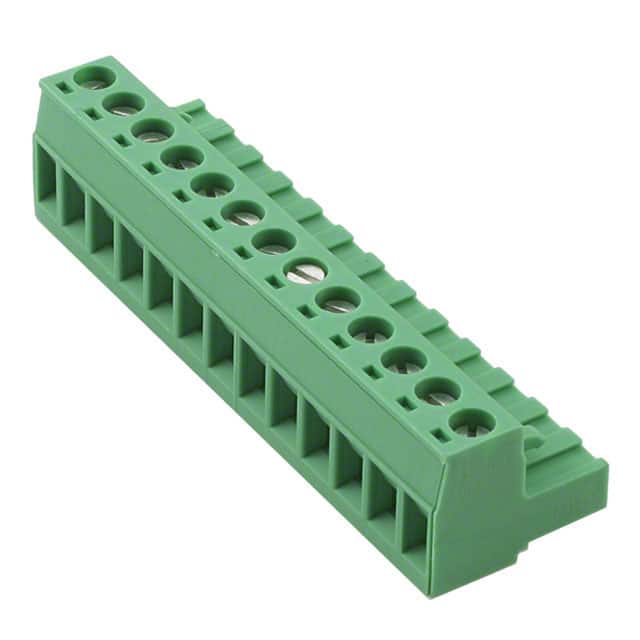

The Phoenix Contact 1754669 is a 13-position terminal block plug designed for reliable wire-to-board connections. It accepts wire gauges from 0.2 to 2.5 mm² and uses a screw rising cage clamp termination for secure conductor retention. The plug features a 180° wire entry and includes retention latches on the non-wire side for added mechanical stability.
Rated for 300V and 15A, this plug is suitable for industrial control and power distribution applications. The green housing and tin-plated contacts provide durability and corrosion resistance. The free hanging (in-line) mounting style allows flexible installation without requiring a fixed panel or rail.
This component is RoHS3 compliant and has an MSL of 1 (unlimited) for moisture sensitivity. It is part of Phoenix Contact's extensive terminal block family, offering a reliable interconnect solution for demanding environments.
It has 13 positions.
The pitch is 5.00mm (0.197 inches).
It is rated for 300V and 15A.
It uses free hanging (in-line) mounting.
Screw rising cage clamp termination.
It accepts 0.2 to 2.5 mm² wire.
The contact mating finish is tin.
