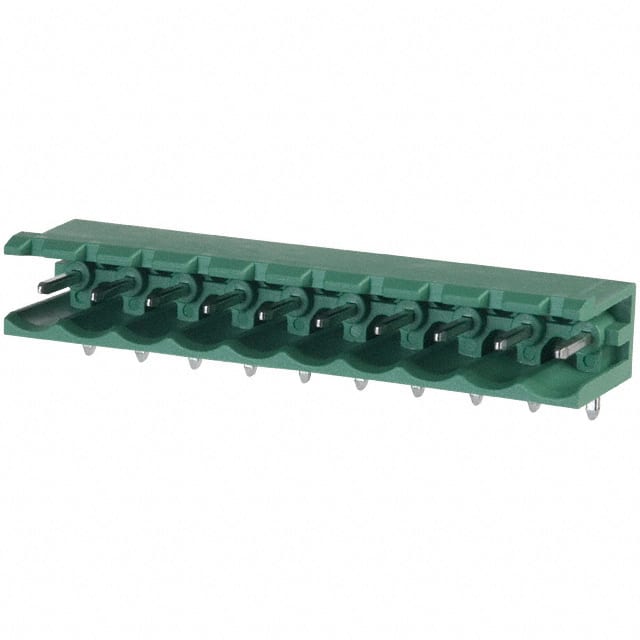

1754591 This Phoenix Contact terminal block header offers 10 positions with a 5.00mm pitch in a right angle orientation. It features a shrouded 2-side design and through-hole solder termination.
Mfr Part #:

1754591

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
This Phoenix Contact terminal block header offers 10 positions with a 5.00mm pitch in a right angle orientation. It features a shrouded 2-side design and through-hole solder termination.
✓ Total Stock: 10 pcs

1754591 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1754591 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Color
Contact Mating Finish
Current
Halogen Free
Header Orientation
Industrial Grade
Lead Spacing
Lead Style
Medical Grade
Military Grade
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
View Similar Products (0)

1754591 Description

Short technical summary and product information.

The Phoenix Contact 1754591 is a 10-position terminal block header designed for PCB mounting. It is a shrouded (2 side) header with male pins arranged in a single level at a 5.00mm pitch. The header is oriented at 90 degrees (right angle) relative to the PCB, making it suitable for wire-to-board connections where space saving is needed.



Electrical ratings include a voltage of 300V and a current of 15A. The contact mating finish is tin, providing reliable conductivity. The housing is green in color and the termination style is solder via through-hole mounting. This component is intended for use in industrial control, power distribution, and automation systems where secure and organized wiring is required.

1754591 Quick Information

Product Type: Terminal Block Header
Canonical Name: 10 Position 5.00mm Pitch Right Angle Shrouded Header, Through Hole, Solder Termination
Subcategory: Terminal Block Header

1754591 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

1754591 Features

  • 10 positions with 5.00mm pitch spacing.
  • Right angle 90 degree header orientation.
  • Through-hole solder termination for PCB mounting.
  • Shrouded 2 side design for pin protection.
  • Tin contact mating finish rated 300V/15A.

1754591 Applications

  • Wire-to-board connections in industrial control panels.
  • Power distribution in automation equipment.
  • Terminal block interfaces for PLC and I/O modules.

1754591 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the 1754591 header have?

It has 10 positions.

What is the pitch of this terminal block header?

The pitch is 5.00mm.

What are the electrical ratings for the 1754591?

Rated voltage is 300V and rated current is 15A.

What is the mounting style of this header?

It is through-hole mounting with solder termination.

Is the header shrouded?

Yes, it is a shrouded 2 side header for protection of the male pins.
