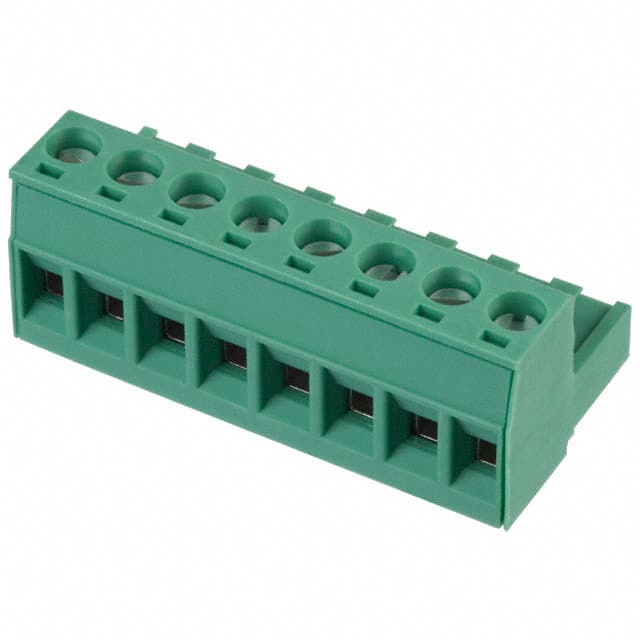

1754562 Phoenix Contact 1754562 is an 8-position terminal block plug with a 5.00mm pitch, rated for 15A and 300V. It features a free hanging (in-line) mounting type and screw rising cage clamp termination.
Mfr Part #:

1754562

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1754562 is an 8-position terminal block plug with a 5.00mm pitch, rated for 15A and 300V. It features a free hanging (in-line) mounting type and screw rising cage clamp termination.
✓ Total Stock: 13 pcs

1754562 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
12 pcs
On Request
12 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1754562 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1754562 Description

Short technical summary and product information.

The Phoenix Contact 1754562 is an 8-position terminal block plug designed for reliable wire-to-board connections. It features a 5.00mm pitch and a single level with 8 positions per level. The plug accepts wire gauges from 0.2 to 2.5mm² and is rated for 15A and 300V.



The termination style is screw rising cage clamp, providing a secure and vibration-resistant connection. The plug wire entry is 180°, allowing for straight wire insertion. The contact mating finish is tin, ensuring good conductivity and corrosion resistance.



The housing is green and includes retention latches on the non-wire side for secure mating with the header. The mounting type is free hanging (in-line), making it suitable for applications where the connector is not panel-mounted.

1754562 Quick Information

Product Type: Terminal Block Plug
Canonical Name: Phoenix Contact 1754562 Terminal Block Plug, 8 Position, 5.00mm Pitch, Free Hanging
Subcategory: Headers, Plugs and Sockets

1754562 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1754562 Features

  • 8 positions with 5.00mm pitch.
  • Screw rising cage clamp termination.
  • Rated for 15A and 300V.
  • Free hanging in-line mounting type.
  • Tin contact mating finish.

1754562 Applications

  • Industrial control panel wiring.
  • Building automation and lighting systems.
  • Power distribution and signal connections.
  • Machinery and equipment interconnections.

1754562 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1754562 have?

It has 8 positions.

What is the pitch of the 1754562 terminal block plug?

The pitch is 5.00mm.

What is the current rating of the Phoenix Contact 1754562?

The current rating is 15A.

What is the voltage rating of the 1754562?

The voltage rating is 300V.

What mounting type does the 1754562 use?

It uses free hanging (in-line) mounting.

What termination style does the Phoenix Contact 1754562 have?

It uses screw rising cage clamp termination.

What wire gauge range is accepted by the 1754562?

It accepts 0.2-2.5mm² wire.
