1754559 8-position shrouded header, 90° right angle orientation, 5.00mm pitch, through hole solder termination, rated 15A/300V.
Mfr Part #:

1754559

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
8-position shrouded header, 90° right angle orientation, 5.00mm pitch, through hole solder termination, rated 15A/300V.
✓ Total Stock: 94 pcs

1754559 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
94 pcs
On Request
94 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1754559 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
View Similar Products (0)

1754559 Description

Short technical summary and product information.

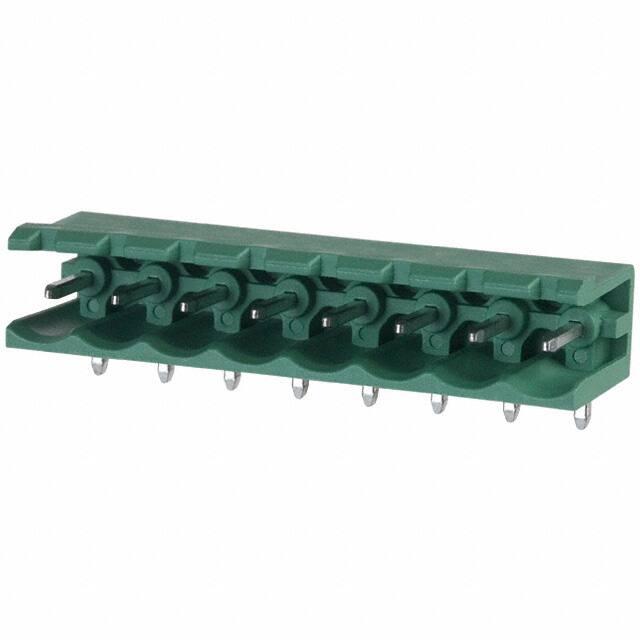

The Phoenix Contact 1754559 is an 8-position terminal block header with male pins, featuring a shrouded (2 side) design for secure plug mating. It offers a 5.00mm (0.197") pitch and a 90° right angle orientation, making it suitable for compact wiring layouts where space is constrained. The green housing and tin-plated contact mating finish provide reliable conductivity and corrosion resistance.



This header supports a current rating of 15A and a voltage rating of 300V, accommodating moderate-power industrial and commercial control applications. The through hole mounting and solder termination ensure robust mechanical attachment to printed circuit boards.



Ideal for use in PLC systems, industrial automation panels, and power distribution blocks, this component is part of a broad terminal block ecosystem from Phoenix Contact.

1754559 Quick Information

Product Type: Terminal Block Header
Series: Header, Male Pins, Shrouded (2 Side)
Canonical Name: 8 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole
Subcategory: Terminal Block Headers

1754559 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

1754559 Features

  • 8 positions with 5.00mm pitch spacing.
  • Rated for 15A current and 300V.
  • 90° right angle through hole mounting.
  • Shrouded header with 2 side shrouding.
  • Tin plated contact mating finish.

1754559 Applications

  • Used in industrial control panel wiring.
  • Suitable for PLC and I/O module connections.
  • Ideal for power distribution blocks.
  • Fits compact PCB layouts requiring right angle.

1754559 FAQs

4 frequently asked questions generated from this part’s specifications.
How many positions does the 1754559 terminal block header have?

8 positions.

What is the pitch of this header?

5.00mm (0.197").

What is the current and voltage rating?

15A and 300V.

What mounting type does this header use?

Through hole with solder termination.
