1754517 Phoenix Contact 1754517 is a 6-position, 5.00mm pitch, right angle terminal block header with through hole mounting and tin-plated contacts. It is rated for 300V and 15A.
Mfr Part #:

1754517

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1754517 is a 6-position, 5.00mm pitch, right angle terminal block header with through hole mounting and tin-plated contacts. It is rated for 300V and 15A.
✓ Total Stock: 1 pcs

1754517 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request NO DC On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1754517 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Storage Temperature
Termination Style
Type
Voltage
View Similar Products (0)

1754517 Description

Short technical summary and product information.

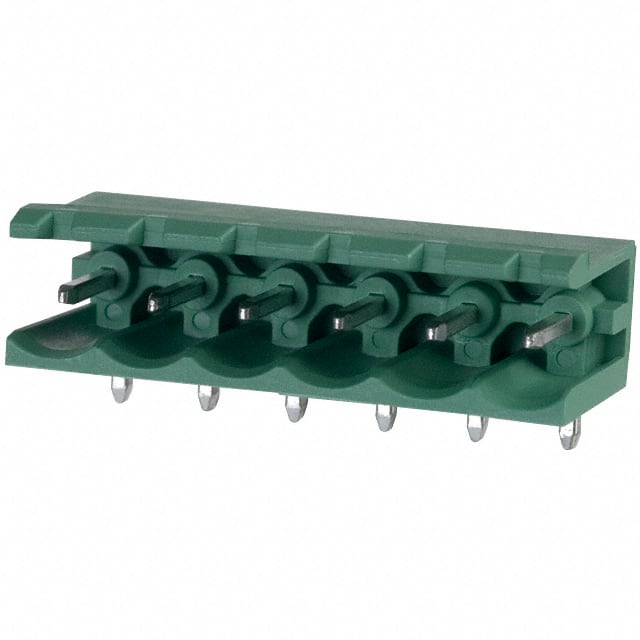

This is a terminal block header from Phoenix Contact, part number 1754517. It features 6 positions arranged in a single level with a 5.00mm pitch. The header is oriented at 90 degrees (right angle) and is designed for through hole soldering.



The header is shrouded on two sides, providing protection for the male pins. The contact mating finish is tin, suitable for reliable connections. The housing is green in color, typical for Phoenix Contact terminal blocks.



Electrical ratings are 300V and 15A, though these values may vary depending on application conditions. The component is RoHS3 compliant and has an MSL of 1 (unlimited). It is suitable for use in industrial control, automation, and power distribution systems.

1754517 Quick Information

Product Type: Terminal Block Header
Series: COMBICON MSTB
Canonical Name: Phoenix Contact 1754517 - Terminal Block Header, 6 Position, 5.00mm Pitch, Right Angle, Through Hole
Subcategory: Terminal Block Headers

1754517 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 30
REACH Status: REACH Unaffected

1754517 Features

  • 6 positions with 5.00mm pitch.
  • Right angle orientation for space-saving layouts.
  • Through hole mounting for secure soldering.
  • Tin-plated contacts for reliable conductivity.
  • Shrouded header design for pin protection.

1754517 Applications

  • Used in industrial control panels.
  • Suitable for power distribution systems.
  • Ideal for automation equipment wiring.
  • Common in building automation applications.

1754517 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1754517 have?

6 positions.

What is the pitch of the 1754517?

5.00mm (0.197 inches).

What is the current rating of the 1754517?

15 A (note: some sources indicate 12 A, verify with manufacturer).

What is the voltage rating of the 1754517?

300 V (note: some sources indicate 320 V, verify with manufacturer).

What is the mounting type of the 1754517?

Through hole.

What is the termination style?

Solder.

What is the contact finish?

Tin.
