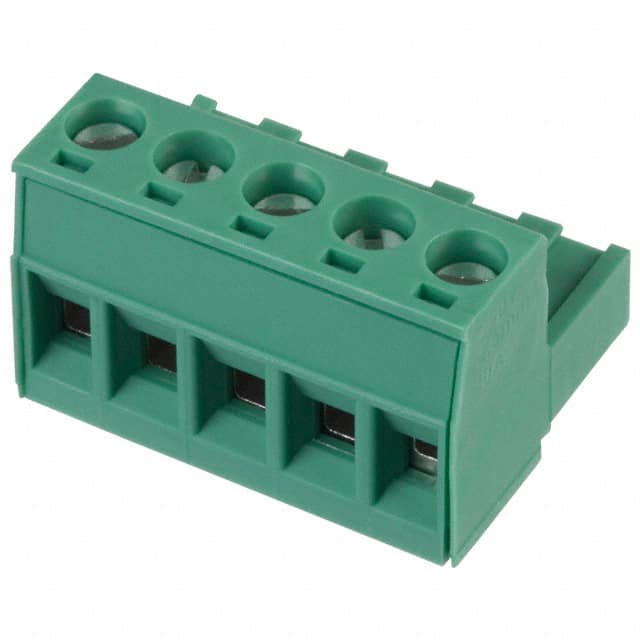

1754504 Terminal block plug with 5 positions, 5.00mm pitch, and screw rising cage clamp termination. Rated for 15A and 300V with free hanging mounting.
Mfr Part #:

1754504

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Terminal block plug with 5 positions, 5.00mm pitch, and screw rising cage clamp termination. Rated for 15A and 300V with free hanging mounting.
✓ Total Stock: 46 pcs

1754504 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
46 pcs
On Request
46 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1754504 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Current Rating
Features
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
SVHC Present
Storage Temperature
Termination Style
Type
Voltage
Voltage Rating
Wire Gauge or Range
View Similar Products (0)

1754504 Description

Short technical summary and product information.

The Phoenix Contact 1754504 is a 5-position plug belonging to the terminal block header, plug, and socket family. It features female sockets with a 5.00mm pitch and a free hanging (in-line) mounting style. The termination uses a screw-rising cage clamp mechanism, suitable for wire gauges from 0.2 to 2.5 mm².



This plug is rated for a current of 15A and a voltage of 300V, making it suitable for industrial control and power distribution applications. The contact mating finish is tin, and the housing is green. It includes retention latches on the non-wire side for secure mating.



The plug wire entry is 180°, allowing straight-in wire connection. The product is RoHS3 compliant with a moisture sensitivity level of 1 (unlimited).

1754504 Quick Information

Product Type: Terminal Block Plug
Series: COMBICON MSTB
Canonical Name: Terminal Block Plug, Female Sockets, 5 Position, 5.00mm Pitch, Free Hanging
Subcategory: Headers, Plugs and Sockets

1754504 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1754504 Features

  • 5 positions with 5.00mm pitch spacing.
  • Screw rising cage clamp termination.
  • Rated for 15A current and 300V voltage.
  • Free hanging in-line mounting style.
  • Retention latches for secure connection.

1754504 Applications

  • Used in industrial terminal block systems.
  • Suitable for power distribution and control panels.
  • Ideal for wire-to-board connections in equipment.

1754504 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1754504 have?

It has 5 positions.

What is the pitch of the 1754504 terminal block?

The pitch is 5.00mm (0.197").

What is the current rating of the 1754504?

The current rating is 15A.

What is the voltage rating of the 1754504?

The voltage rating is 300V.

What is the mounting type for the 1754504?

Free hanging (in-line) mounting.

What termination style does it use?

Screw - rising cage clamp termination.

What wire gauge range is supported?

Supports 0.2-2.5mm² wire gauge.
