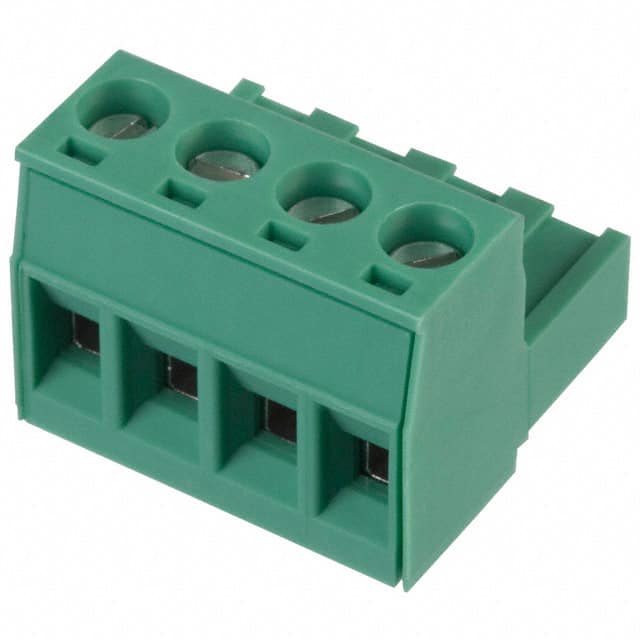

1754481 Phoenix Contact 1754481 is a 4-position plug with female sockets, 5.00mm pitch, rated 15A at 300V, with screw rising cage clamp termination and free hanging mounting.
Mfr Part #:

1754481

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1754481 is a 4-position plug with female sockets, 5.00mm pitch, rated 15A at 300V, with screw rising cage clamp termination and free hanging mounting.
✓ Total Stock: 400 pcs

1754481 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
350 pcs
On Request
350 pcs On Request 1 On Request On Request On Request On Request On Request
Chanetech ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1754481 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Color
Contact Mating Finish
Current
Features
Industrial Grade
Lead Spacing
Lead Style
Medical Grade
Military Grade
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
SVHC Present
Storage Temperature
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1754481 Description

Short technical summary and product information.

The Phoenix Contact 1754481 is a 4-position terminal block plug with female sockets, designed for use in industrial control and power distribution applications. It features a 5.00mm pitch and a single level with 4 positions per level. The plug accepts wire gauges from 0.2 to 2.5mm² and is rated for 15A at 300V. Termination is via a screw rising cage clamp, providing a secure and reliable connection. The plug is free hanging (in-line) with a 180° wire entry angle. The contact mating finish is tin, and the housing is green with retention latches on the non-wire side for secure mating. This component is RoHS3 compliant and has an MSL of 1 (unlimited).

1754481 Quick Information

Product Type: Terminal Block Plug
Series: COMBICON MSTB
Canonical Name: Phoenix Contact 1754481 - 4 Position 5.00mm Pitch Plug, Female Sockets Terminal Block
Subcategory: Headers, Plugs and Sockets

1754481 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1754481 Features

  • 4-position plug with female sockets.
  • 5.00mm pitch for compact wiring.
  • Rated 15A at 300V.
  • Screw rising cage clamp termination.
  • Free hanging in-line mounting.

1754481 Applications

  • Industrial control panel wiring.
  • Power distribution terminal blocks.
  • Sensor and actuator connections.
  • Building automation systems.

1754481 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1754481 have?

It has 4 positions with 1 level and 4 positions per level.

What is the pitch of this terminal block plug?

The pitch is 5.00mm (0.197 inches).

What is the current and voltage rating?

Rated for 15A at 300V.

What type of mounting does this plug use?

Free hanging (in-line) mounting with 180° wire entry.

What wire gauge range is accepted?

Accepts wire from 0.2 to 2.5mm².

What termination style is used?

Screw - Rising Cage Clamp termination.

What color is the housing?

The housing is green.
