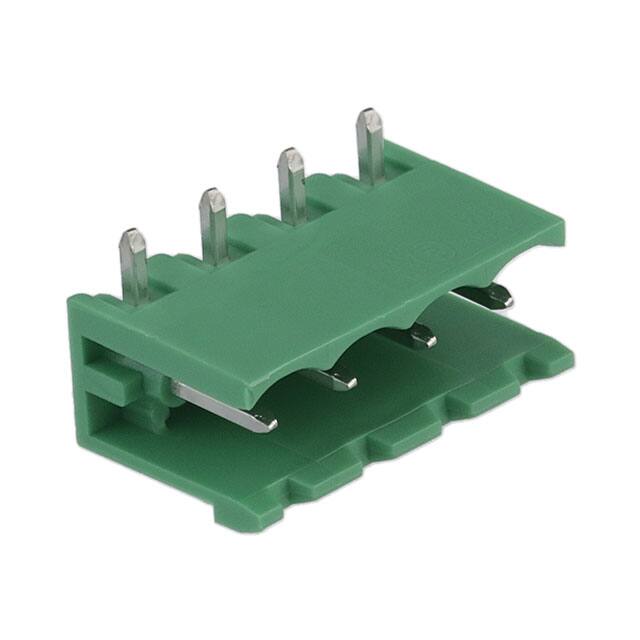

1754478 The Phoenix Contact 1754478 is a 4-position, 5.00mm pitch, right angle, through-hole terminal block header. It features a shrouded (2 side) male pin design with tin contacts, rated for 300V and 15A.
Mfr Part #:

1754478

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
The Phoenix Contact 1754478 is a 4-position, 5.00mm pitch, right angle, through-hole terminal block header. It features a shrouded (2 side) male pin design with tin contacts, rated for 300V and 15A.
✓ Total Stock: 22 pcs

1754478 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
22 pcs
On Request
22 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1754478 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
View Similar Products (0)

1754478 Description

Short technical summary and product information.

This is a terminal block header from Phoenix Contact, part of the headers, plugs and sockets category. It is a 4-position, single-level, right-angle header with a 5.00mm pitch.



The header has a shrouded (2 side) design, male pins, and a through-hole mounting with solder termination. The contact mating finish is tin, and the housing is green.



Electrical ratings: 300V voltage, 15A current. Suitable for use in industrial control cabinets, field installations, and device connection technology as per the manufacturer's product range.

1754478 Quick Information

Product Type: Header, Male Pins, Shrouded (2 Side)
Series: COMBICON MSTB
Canonical Name: Phoenix Contact 1754478 Header, Male Pins, Shrouded (2 Side), 4 Position, 5.00mm Pitch, Right Angle, Through Hole, Solder
Subcategory: Shrouded Header

1754478 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1754478 Features

  • 4 positions in a single level.
  • 5.00mm pitch for compact designs.
  • Right angle orientation for space-saving.
  • Rated for 300V and 15A.
  • Tin plated contacts for reliable connection.

1754478 Applications

  • Used in industrial control cabinets.
  • Suitable for field installation wiring.
  • Ideal for device connection technology.
  • Found in automation and interface systems.

1754478 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1754478 have?

4 positions.

What is the pitch of the 1754478?

5.00mm.

What is the current rating?

15A.

What is the voltage rating?

300V.

What is the mounting type?

Through hole.

What is the orientation of the header?

90°, right angle.

What is the contact mating finish?

Tin.
