| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
31 pcs
|
31 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

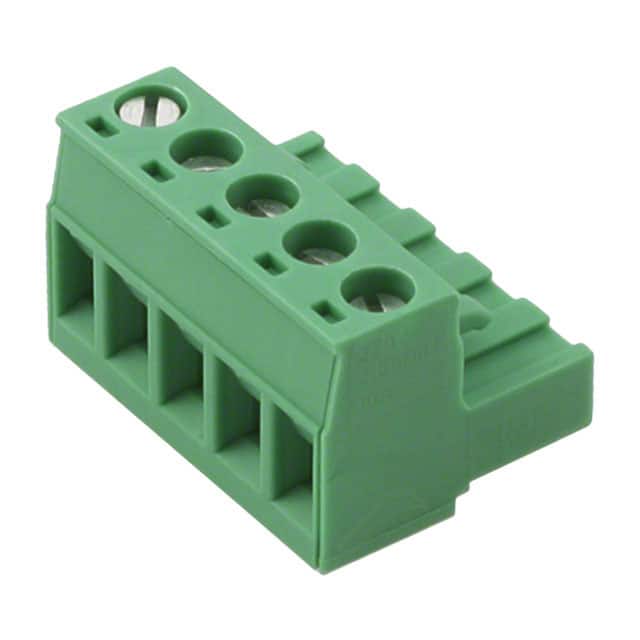

The Phoenix Contact 1752399 is a 5-position plug with female sockets designed for terminal block systems. It has a pitch of 5.08mm (0.200 inches) and features a single level with 5 positions per level. The mounting type is free hanging (in-line), making it suitable for wire-to-wire or wire-to-board connections where the plug mates with a header.
This plug uses a screw-rising cage clamp termination style, which secures wires by raising a cage against the conductor when the screw is tightened. It accepts wire gauges from 0.2 to 2.5mm². The electrical ratings are 15A current and 300V voltage, suitable for many industrial control and power distribution applications.
Mechanical features include retention latches on the non-wire side to ensure secure mating with the header. The housing is green, and the contact mating finish is gold for reliable conductivity. The plug is rated for 180° wire entry, allowing straight-in wiring.
It has 5 positions.
The pitch is 5.08mm (0.200 inches).
The current rating is 15A.
The voltage rating is 300V.
The mounting type is Free Hanging (In-Line).
The termination style is Screw - Rising Cage Clamp.
It accepts wire gauge 0.2-2.5mm².
