| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
136 pcs
|
136 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Lead Spacing | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

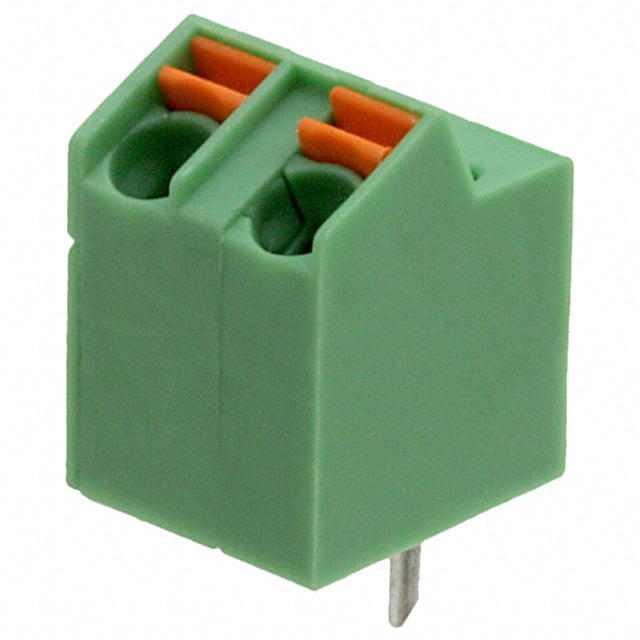

The Phoenix Contact 1752214 is a 2 position wire to board terminal block with a 5.00mm pitch. It features a screwless spring cage tension clamp termination for fast and reliable wire connections without the need for tools. The mating orientation is 25° (155°) angle with board, allowing for space-saving layouts on the PCB.
Rated for 10A and 300V, this terminal block accepts wire gauges from 16 to 26 AWG. The housing is green and the mounting type is through hole, providing a secure mechanical connection to the printed circuit board. The single level design simplifies wiring in compact applications.
This component is suitable for industrial control, building automation, and power distribution systems where reliable wire to board connections are required. The spring clamp mechanism reduces installation time and ensures consistent contact pressure over the life of the connection.
It has 2 positions per level.
The pitch is 5.00mm (0.197 inches).
The current rating is 10 A.
The voltage rating is 300 V.
It accepts 16 to 26 AWG wire.
It uses screwless spring cage tension clamp termination.
Through hole mounting.
