1751516 6-position wire-to-board terminal block with 3.81mm pitch. Features screwless spring cage termination for 16-26 AWG wires.
Mfr Part #:

1751516

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
6-position wire-to-board terminal block with 3.81mm pitch. Features screwless spring cage termination for 16-26 AWG wires.
✓ Total Stock: 6,376 pcs

1751516 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
3,188 pcs
On Request
3188 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
3,188 pcs
On Request
3188 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1751516 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Lead Spacing
Lead Style
Mating Orientation
Mounting Type
Number of Levels
Pitch
Positions Per Level
SVHC Present
Voltage
Wire Gauge
Wire Termination
View Similar Products (0)

1751516 Description

Short technical summary and product information.

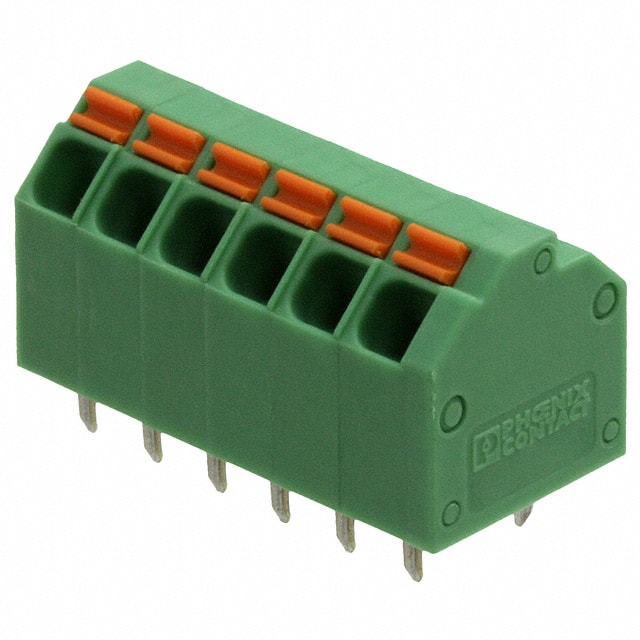

The Phoenix Contact 1751516 is a 6-position wire-to-board terminal block with a 3.81mm pitch. It features a screwless spring cage (tension clamp) termination mechanism, allowing for quick and reliable wire connections without tools. The terminal block is rated for 10A current and 300V voltage, suitable for a variety of industrial and commercial applications. It accepts wire gauges from 16 to 26 AWG. The mating orientation is 45° (135°) angle with the board, facilitating space-saving PCB layouts. The component is through-hole mounted and comes in a green color. This terminal block is part of Phoenix Contact's wire-to-board connector family, designed for secure and efficient wiring in control systems, power supplies, and automation equipment.

1751516 Quick Information

Product Type: Wire-to-Board Terminal Block
Series: SPTA 1,5/
Canonical Name: Phoenix Contact 1751516 6-Position 3.81mm Pitch Wire-to-Board Terminal Block
Subcategory: Wire-to-Board

1751516 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1751516 Features

  • 6 positions with 3.81mm pitch.
  • Screwless spring cage termination for tool-less wiring.
  • Rated for 10A current and 300V voltage.
  • Accepts 16-26 AWG wire gauge.
  • 45° angled mating orientation for space-saving layout.

1751516 Applications

  • Ideal for wire-to-board connections in industrial control systems.
  • Used in power supply and distribution units.
  • Suitable for automation equipment requiring reliable terminations.

1751516 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1751516 have?

The terminal block has 6 positions per level.

What is the pitch of the 1751516?

The pitch is 3.81mm (0.150 inches).

What is the current rating of the 1751516?

The current rating is 10A (note: distributor spec shows 9A, verify with manufacturer).

What is the voltage rating of the 1751516?

The voltage rating is 300V (note: distributor spec shows 160V, verify with manufacturer).

What is the mounting type of the 1751516?

The mounting type is Through Hole.

What wire gauge does the 1751516 accept?

It accepts 16-26 AWG wire.

What type of termination does the 1751516 use?

It uses screwless spring cage (tension clamp) termination.
