| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Hole Diameter | |
| Lead Style | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Termination Style | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

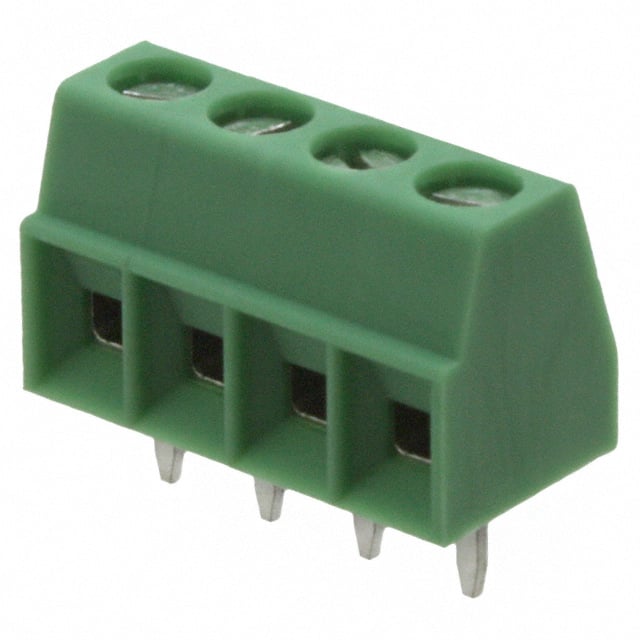

The Phoenix Contact 1751264 is a 4-position PC terminal block from the MKDS 1 series, designed for wire-to-board connections. It has a pitch of 3.5 mm and uses a screw connection with a rising cage clamp termination. The conductor/PCB connection direction is horizontal with the board (0°).
The terminal block is rated for a nominal current of 10 A and a nominal voltage of 160 V, with a maximum load current of 12 A. It accepts wire gauges from 16 to 26 AWG and has a nominal cross section of 1 mm². The insulating material is polyamide (PA) with flammability class UL 94 V0.
The component is mounted via through hole soldering. Mechanical specifications include a tightening torque of 0.22-0.25 Nm, M2 screw thread, and a stripping length of 5 mm. The overall dimensions are 7.3 mm x 7.3 mm x 8.5 mm (L x W x H). The part is green in color and is RoHS compliant.
The pitch is 3.5 mm.
It has 4 positions.
The nominal current rating is 10 A, with a maximum load current of 12 A.
The nominal voltage is 160 V. The UL/CUL rating is 300 V for Use Group B and D.
Through hole soldering.
Screw connection with rising cage clamp.
Yes, RoHS compliant since 01/01/2003.
