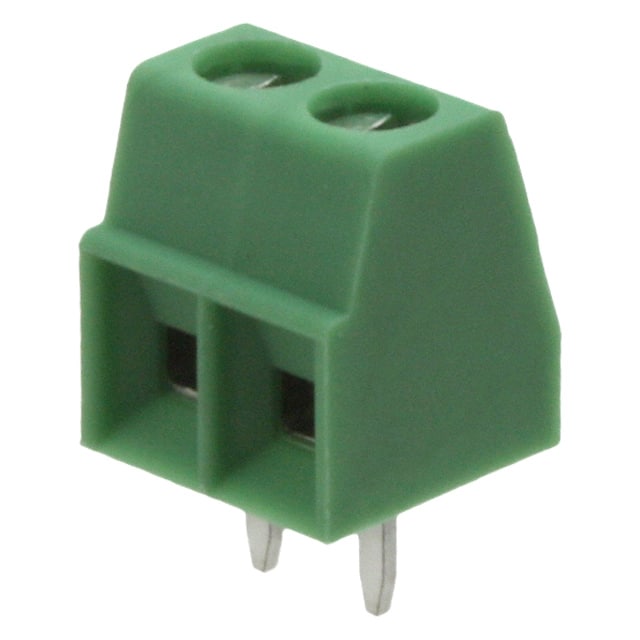

1751248 Phoenix Contact 1751248 is a 2-position PCB terminal block with 3.5 mm pitch, rated for 10 A and 300 V. It features a screw rising cage clamp termination and through hole mounting.
Mfr Part #:

1751248

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1751248 is a 2-position PCB terminal block with 3.5 mm pitch, rated for 10 A and 300 V. It features a screw rising cage clamp termination and through hole mounting.
✓ Total Stock: 9 pcs

1751248 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
9 pcs
On Request
9 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1751248 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Current Rating
Hole Diameter
Lead Spacing
Lead Style
Length
Mating Orientation
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Storage Temperature
Voltage
Voltage Rating
Wire Gauge
Wire Termination
View Similar Products (0)

1751248 Description

Short technical summary and product information.

The Phoenix Contact 1751248 is a 2-position PCB terminal block from the MKDS 1 series. It features a 3.5 mm pitch and is designed for wire-to-board connections with a screw rising cage clamp termination. The block is rated for a nominal current of 10 A and a nominal voltage of 160 V (IEC) or 300 V (UL), with a maximum load current of 12 A.



The terminal block accepts wire gauges from 16 to 30 AWG and requires a stripping length of 5 mm. The screw connection has a tightening torque range of 0.22 to 0.25 Nm. The insulating material is polyamide (PA) with a flammability class of V0 per UL 94.



Mounting is through hole with a horizontal mating orientation. The block has a compact length of 7.3 mm and pin dimensions of 0.5 x 0.9 mm. It is supplied in packs of 50 pieces and is RoHS compliant.

1751248 Quick Information

Product Type: PCB Terminal Block
Series: MKDS 1
Canonical Name: Phoenix Contact MKDS 1/2-3,5 2-Position PCB Terminal Block, 3.5 mm Pitch
Subcategory: Wire to Board

1751248 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 30
REACH Status: REACH Unaffected
Lead Free: Yes

1751248 Features

  • 2 positions with 3.5 mm pitch.
  • Screw rising cage clamp termination.
  • Rated for 10 A and 300 V.
  • Through hole mounting style.
  • Compact 7.3 mm length.

1751248 Applications

  • Ideal for wire-to-board connections.
  • Used in industrial control systems.
  • Suitable for PCB power distribution.
  • Common in automation equipment.

1751248 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1751248 terminal block have?

2 positions.

What is the pitch of this terminal block?

3.5 mm.

What is the current rating of the 1751248?

10 A nominal, with a maximum load current of 12 A.

What is the voltage rating?

300 V (UL) or 160 V (IEC).

What is the mounting type?

Through hole.

What type of wire termination does it use?

Screw - rising cage clamp.

What wire gauge range is supported?

16 to 30 AWG.
