| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Industrial Grade | |
| Insulation | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| SVHC Present | |
| Storage Temperature | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

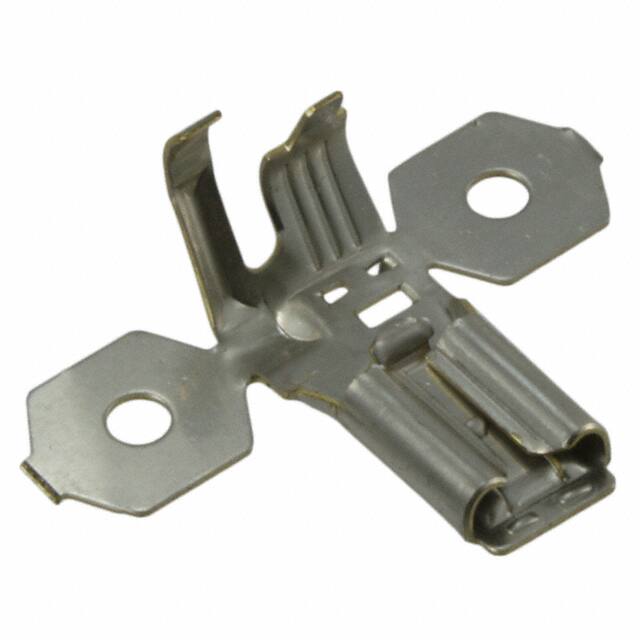

The TE Connectivity 175019-1 is a non-insulated quick connect receptacle (female) designed for 16-22 AWG wires. It features a 0.187" (4.75mm) tab width and a flag (angled 90°) terminal type, making it suitable for right-angle free hanging applications.
The contact is made of brass with a tin finish, ensuring good conductivity and corrosion resistance. Termination is via crimp, providing a secure mechanical and electrical connection. The tab length is 6.30mm and thickness is 0.51mm.
This connector is part of TE Connectivity's range of quick disconnect terminals, commonly used in automotive, appliance, and industrial applications where reliable and quick wire connections are needed. The non-insulated design allows for use in applications where insulation is not required or where additional insulation can be added.
Free Hanging (In-Line), Right Angle.
0.187" (4.75mm).
16-22 AWG.
Crimp.
No, it is non-insulated.
Tin.
Angled - 90°, Flag.
