| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Ingress Protection | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature Range | |
| Voltage Rating | |
| Weight |

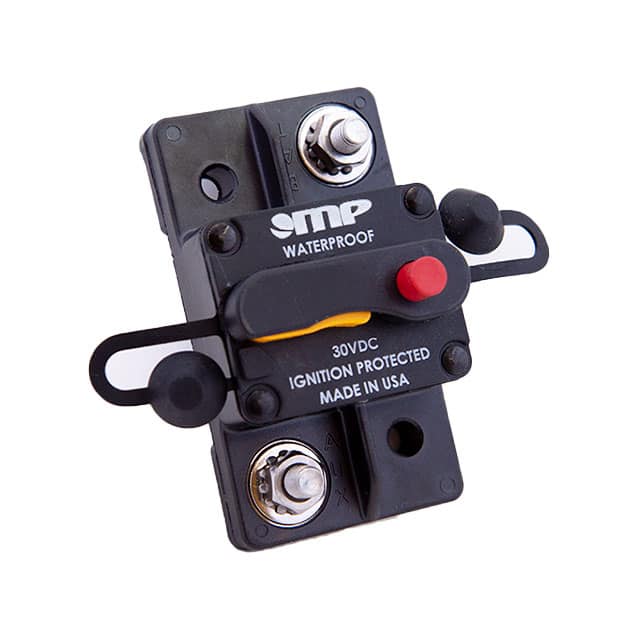

The Mechanical Products 175-S0-175-2R is a high amperage Type III manual circuit breaker rated for 175A and 30 VDC. It is part of the Series 17, designed for superior circuit protection in vehicle applications.
This thermal circuit breaker offers features such as ignition protection compliant to SAE J1171 and an IP67 dust and waterproof rating, making it suitable for harsh environments. It has a push-to-reset actuator and a single pole configuration.
The breaker meets various compliance standards including SAE J1625, ABYC-E11, and UL1077 for interrupt capacity. It also conforms to Mil-STD-202 for corrosion, humidity, shock, and vibration resistance.
With a chassis mount type, the 175-S0-175-2R is built for robust performance and reliability in demanding applications.
30 VDC.
-40°C to 85°C.
Chassis mount.
175A.
1500A at 30 VDC (Type I and III) and 2500A at 14 VDC (Type III).
IP67 dust and waterproof.
Yes, compliant with SAE J1171.
