| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Ingress Protection | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature Range | |
| SVHC Present | |
| Voltage Rating |

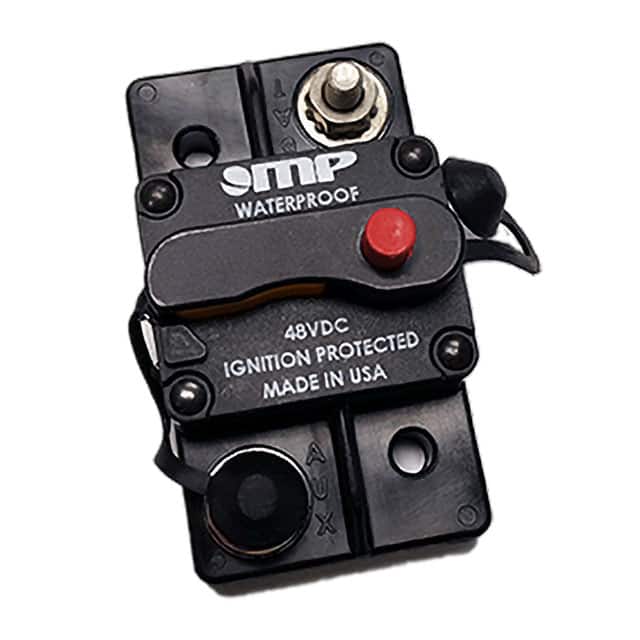

The Mechanical Products 175-S0-080-2R is a thermal circuit breaker from the Series 17 line, rated for 80 Amps and a maximum voltage of 48 VDC. This single-pole breaker features a convenient push-to-reset actuator and is designed for chassis mounting.
It offers robust protection with a high interrupt capacity of 3000A at 14VDC (Type III) and 3000A at 30VDC (Type I). The operating temperature range is -40°C to 85°C, ensuring reliable performance in various environments. The breaker is also ignition-protected and IP67 rated for dust and waterproof protection.
Compliance includes SAE J1171 for ignition protection and IP67 rating for environmental sealing. The breaker is built to withstand shock and vibration according to Mil-STD standards, making it suitable for demanding applications.
The current rating is 80A.
The maximum voltage rating is 48VDC.
It is a thermal circuit breaker.
It is designed for chassis mounting.
The operating temperature range is -40°C to 85°C.
Yes, it is ignition protected and compliant to SAE J1171.
The ingress protection rating is IP67, meaning it is dust and waterproof.
