| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Ingress Protection | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature Range | |
| Voltage Rating | |
| Weight |

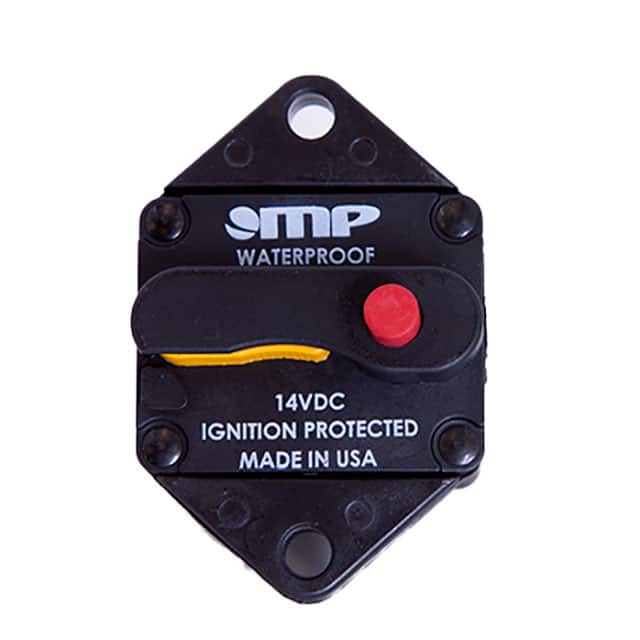

The Mechanical Products Series 17 175-P2-225-2R is a high-amperage thermal circuit breaker rated for 225 Amps and a maximum voltage of 14 VDC. It is designed for Type III vehicle protection and features a push-to-reset actuator for manual operation.
This circuit breaker offers robust protection with an interrupt capacity of 2500A at 14 VDC (Type I) and 1500A at 14 VDC (Type III manual reset). It is built to withstand harsh environments, featuring IP67 dust and waterproof rating, and conforming to Mil-STD-202 for corrosion, humidity, shock, and vibration.
The mounting type is chassis mount, making it suitable for integration into various systems. The operating temperature range is -40°C to 85°C, ensuring reliable performance across a wide spectrum of conditions. Compliance includes ABYC, SAE J1625, and UL1077.
Key specifications include a 1-pole design and ignition protection compliant with SAE J1171. The breaker also includes visible trip indication and is designed for trip-free operation.
The current rating is 225 Amps.
The maximum voltage rating is 14 VDC.
It is a chassis mount type.
It has a push-to-reset actuator.
The operating temperature range is -40°C to 85°C.
Yes, it is compliant to SAE J1171.
The ingress protection rating is IP67.
