Mfr Part #:

175-8238

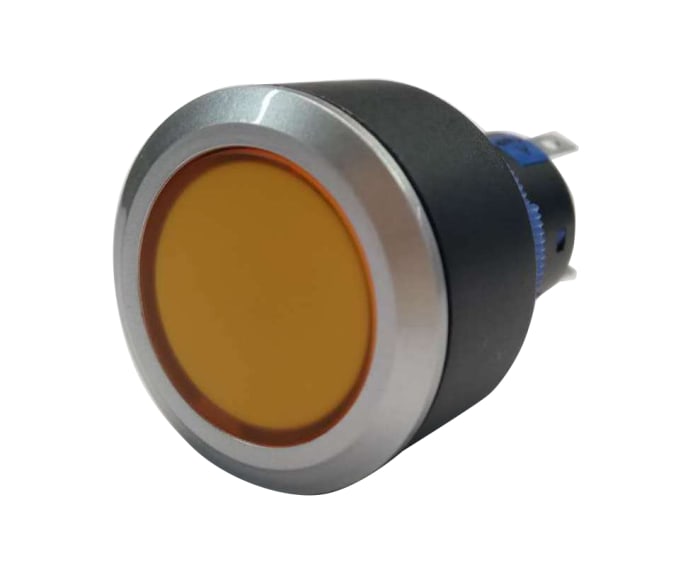

This RS PRO illuminated push button switch offers a panel mount design with a 22.2mm cutout and SPDT contact configuration. It is rated for 250V AC and features a yellow LED indicator.

✓ Total Stock: 16 pcs

$ Price Range: $1.20

175-8238 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	16 pcs On Request	16 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

175-8238 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	RS COMPONENTS
Contact Material	Brass
Country of Origin	Taiwan, Province Of China
Mounting Type	Panel Mount
Terminal Type	Solder
Voltage Rating	250 V ac

View Similar Products (0)

175-8238 Description

Short technical summary and product information.

The RS PRO 175-8238 is an illuminated push button switch designed for panel mounting. It features a standard 22.2mm cutout diameter and a round, orange push button. The switch has a Single Pole Double Throw (SPDT) contact configuration and is rated for a maximum voltage of 250V AC with a contact current rating of 3A or 5A.

This component includes a yellow LED for illumination, providing visual feedback. Its robust construction ensures an IP65 rating, offering protection against dust and water ingress, making it suitable for various industrial and commercial applications. The terminals are designed for solder connections, and the case is silver in color.

With its durable brass contact material and reliable panel mount design, the RS PRO 175-8238 is a versatile solution for control panels and equipment requiring user interface with status indication.

175-8238 Quick Information

Product Type: Illuminated Push Button Switch

Canonical Name: RS PRO Illuminated Push Button Switch, Panel Mount, 22.2mm Cutout, SPDT, Yellow LED, 250V ac, IP65

Subcategory: Illuminated Push Button Switch

175-8238 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

175-8238 Estimated Pricing

Qty	Low	High
1+	$1.20	$1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

175-8238 Features

Illuminated push button switch with yellow LED.
Panel mount design with 22.2mm cutout.
SPDT contact configuration for versatile switching.
Rated for 250V AC operation.
IP65 rated for dust and water resistance.

175-8238 Applications

Suitable for industrial control panels.
Can be used in machinery interfaces.
Ideal for status indication applications.
Applicable in various commercial equipment.
Used where dust and water protection is needed.

175-8238 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the panel cut out diameter for this push button?

The panel cut out diameter for this push button is 22.2 mm.

What is the mounting type of this push button?

This push button is designed for panel mount applications.

What is the contact configuration of this push button?

The contact configuration of this push button is SPDT.

What is the voltage rating of this push button?

The voltage rating of this push button is 250 V ac.

What is the IP rating of this push button?

The IP rating of this push button is IP65.

What are the contact current ratings for this push button?

The contact current ratings for this push button are 3 A and 5 A.

What is the terminal type for this push button?

The terminal type for this push button is Solder.
