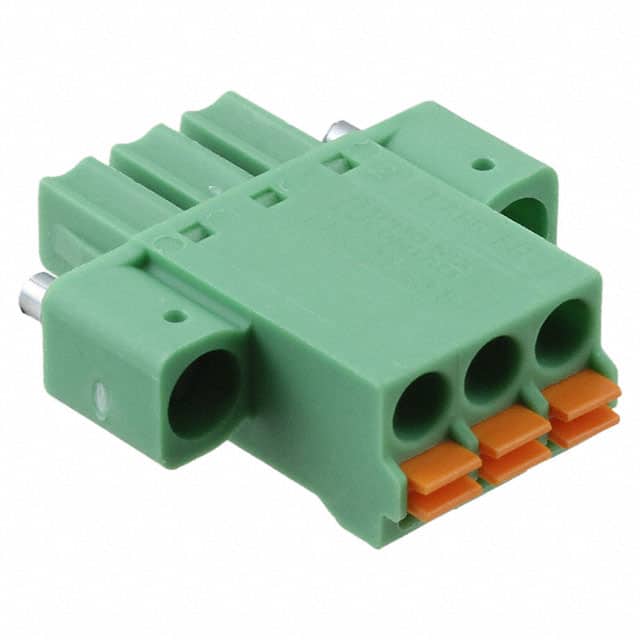

The Phoenix Contact 1748367 is a printed-circuit board connector from the FMC 1,5/..-STF series, part of the MINI COMBICON plug-in system. It is a 3-position plug with female sockets, featuring a 3.81mm pitch and a single level. The connector uses a push-in spring connection method, allowing for tool-free wire termination. It accepts solid and flexible conductors with cross sections from 0.2 to 1.5 mm² (24-16 AWG) and requires a 10 mm stripping length.
Electrically, the connector is rated for 8 A nominal current and 160 V rated voltage (III/2). The contact mating finish is tin, and the housing is green. The plug is free hanging (in-line) and features a screw flange for locking, providing superior mechanical stability. The wire entry direction is 180°.
This connector is suitable for various industrial control and automation applications where reliable and quick wire connections are needed. The push-in spring connection saves installation time, and the screwable flange ensures a secure connection to the mating header.
It has 3 positions.
The pitch is 3.81 mm.
It is rated for 8 A and 160 V (rated voltage III/2).
Free hanging (in-line).
Push-in spring connection.
Solid and flexible conductors from 0.2 to 1.5 mm² (24-16 AWG).
