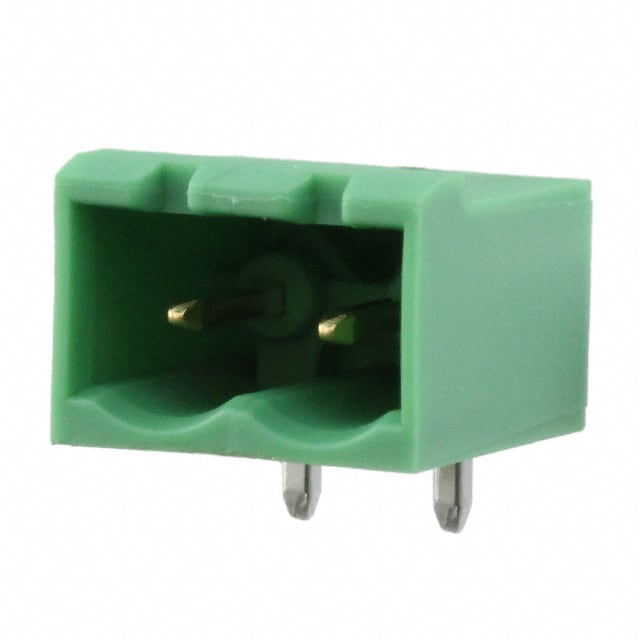

1748167 Phoenix Contact 1748167 is a 2-position terminal block header with 5.08mm pitch, right angle orientation, through hole mounting, and gold-plated contacts.
Mfr Part #:

1748167

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1748167 is a 2-position terminal block header with 5.08mm pitch, right angle orientation, through hole mounting, and gold-plated contacts.
✓ Total Stock: 20 pcs

1748167 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1748167 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Lead Spacing
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1748167 Description

Short technical summary and product information.

The Phoenix Contact 1748167 is a shrouded (4 side) terminal block header designed for reliable wire-to-board connections. It features 2 positions arranged in a single level with a 5.08mm pitch, providing a compact yet robust interface for power and signal distribution.



This header is rated for 15A current and 300V voltage, making it suitable for industrial control, automation, and power supply applications. The right-angle orientation allows for space-saving PCB layouts, while the through-hole solder termination ensures a secure mechanical and electrical connection.



The green housing and gold contact mating finish offer corrosion resistance and reliable signal integrity over repeated mating cycles. As a male pin header, it accepts matching female socket connectors for quick and secure field wiring.

1748167 Quick Information

Product Type: Terminal Block Header
Canonical Name: Phoenix Contact 1748167 - Terminal Block Header, 2 Position, 5.08mm Pitch, Right Angle, Through Hole
Subcategory: Terminal Block Headers

1748167 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1748167 Features

  • 2-position single-level terminal block header.
  • 5.08mm pitch for compact PCB layout.
  • Right-angle orientation for space-saving design.
  • Rated 15A and 300V for power applications.
  • Gold-plated contacts for reliable connections.

1748167 Applications

  • Industrial control and automation systems.
  • Power supply and distribution boards.
  • Building automation and HVAC equipment.
  • Machine interface and sensor connections.

1748167 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1748167 have?

It has 2 positions arranged in a single level.

What is the pitch of this terminal block header?

The pitch is 5.08mm (0.200 inches).

What is the current and voltage rating?

It is rated for 15A and 300V.

What mounting type does this header use?

It uses through-hole mounting with solder termination.

What is the orientation of the header?

The header is oriented at 90 degrees (right angle).
