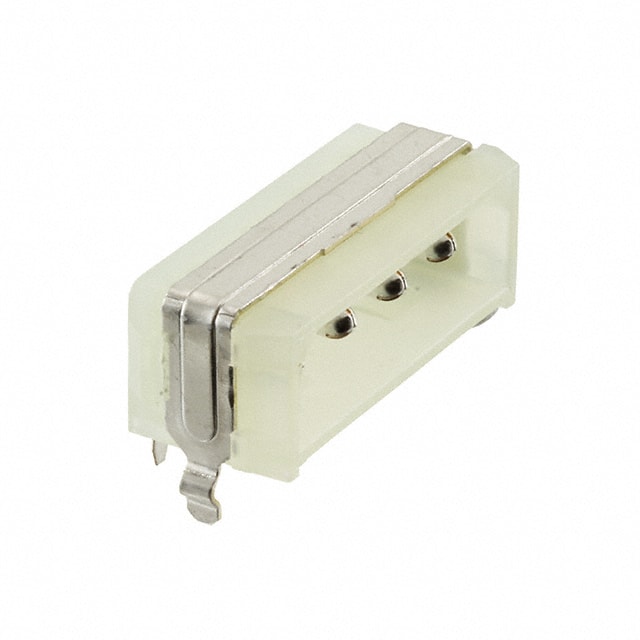

174804-1 TE Connectivity 174804-1 is a 4-position, single-row, shrouded header with male pins, 5.08mm pitch, through hole right angle mounting, rated 10A at 250VAC.
Mfr Part #:

174804-1

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 174804-1 is a 4-position, single-row, shrouded header with male pins, 5.08mm pitch, through hole right angle mounting, rated 10A at 250VAC.
✓ Total Stock: 163 pcs

174804-1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
150 pcs
On Request
150 pcs On Request 1 On Request On Request On Request On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
13 pcs
On Request
13 pcs On Request 1 On Request On Request NO DC On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

174804-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Termination
Voltage Rating
View Similar Products (0)

174804-1 Description

Short technical summary and product information.

The TE Connectivity 174804-1 is a 4-position, single-row header with male pin contacts designed for board-to-cable/wire applications. It features a 5.08mm pitch and a through hole right angle mounting style, making it suitable for compact PCB layouts where a low-profile connection is needed.



The connector is fully shrouded with a 4-wall design and includes a locking ramp for secure mating. Contacts are made of copper alloy with a tin finish, rated for 10A current and 250VAC voltage. The insulation is polyamide (PA66/Nylon 6/6) with a UL94 V-0 flammability rating, and the operating temperature range is -20°C to 105°C.



A board lock feature aids in retention during soldering. The part is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited).

174804-1 Quick Information

Product Type: Header, Male Pins
Series: Commercial MATE-N-LOK
Canonical Name: TE Connectivity 174804-1 Header, Male Pins, 4 Position, 5.08mm Pitch, Through Hole Right Angle
Subcategory: Male Pins

174804-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

174804-1 Features

  • 4 position single row header with 5.08mm pitch.
  • Through hole right angle mounting for compact designs.
  • Shrouded 4-wall housing with locking ramp.
  • Rated 10A at 250VAC with tin-plated contacts.
  • Board lock feature for secure PCB retention.

174804-1 Applications

  • Board-to-cable/wire interconnection in industrial equipment.
  • Power distribution in control panels and machinery.
  • Low-profile right angle connections in space-constrained PCBs.

174804-1 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 174804-1 have?

4 positions, all loaded, in a single row.

What is the pitch of this connector?

5.08mm (0.200 inches).

What is the current rating?

10 Amps.

What is the voltage rating?

250 VAC.

What mounting type does this part use?

Through hole, right angle.

What is the operating temperature range?

-20°C to 105°C.

Is the connector shrouded?

Yes, it is fully shrouded with a 4-wall design and includes a locking ramp.
