| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,200 pcs
|
7200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

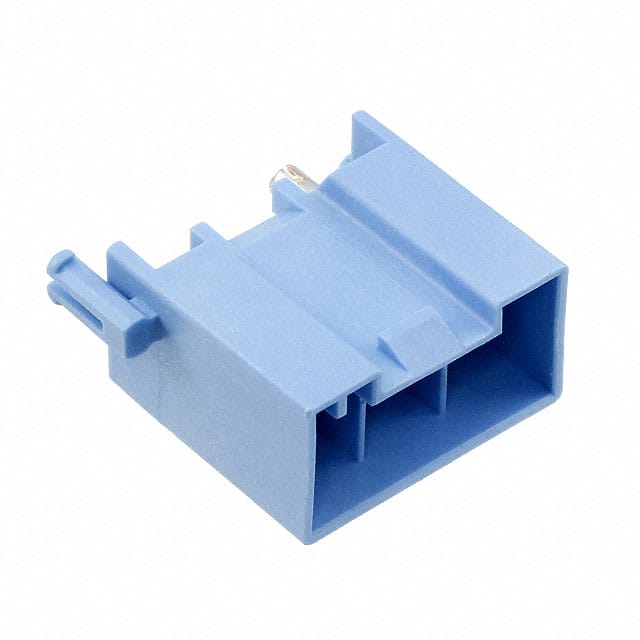

The TE Connectivity 1747996-3 is a 2 position, single row, shrouded header designed for board to cable/wire applications. It features a 4-wall shrouded housing with latch lock fastening and a board lock feature for secure mounting. The header uses rectangular tab contacts made of copper alloy with a tin finish. The insulation is blue polyamide (PA66) nylon 6/6 glass filled with a UL94 V-0 flammability rating. The operating temperature range is -30°C to 105°C. This component is through hole mounted with solder termination and is rated for 600VAC. Current rating varies by wire gauge.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
| 10+ | $0.85 | $0.85 |
| 25+ | $0.83 | $0.83 |
| 600+ | $0.80 | $0.80 |
| 1,050+ | $0.57 | $0.57 |
| 2,550+ | $0.51 | $0.51 |
| 5,100+ | $0.47 | $0.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 1747996-3 has 2 positions in a single row.
The voltage rating is 600VAC.
Through hole with solder termination.
-30°C to 105°C.
Polyamide (PA66) Nylon 6/6 glass filled with UL94 V-0 rating.
