| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Termination | |
| Voltage Rating |

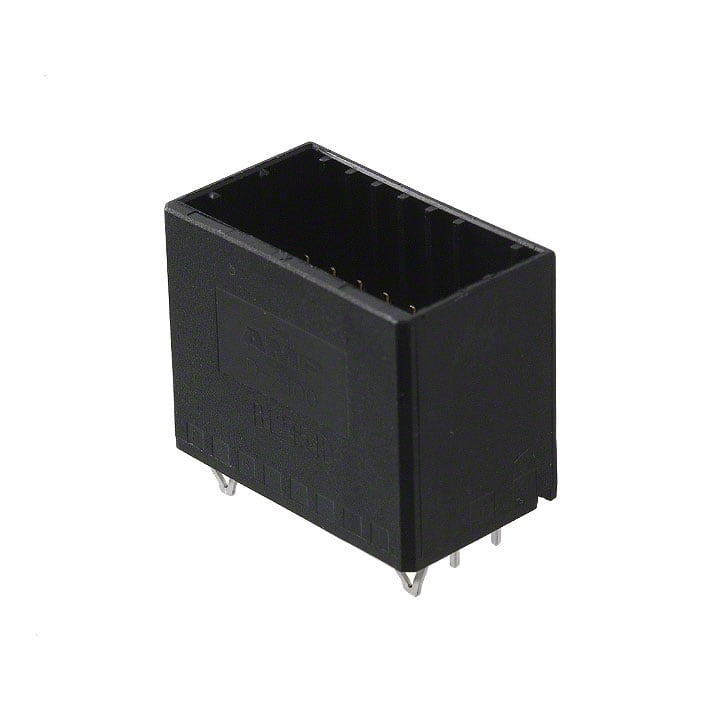

The TE Connectivity 1747994-1 is a 16-position, 2-row header from the Dynamic D-2000 series. It features a 2.5mm pitch and 3.75mm row spacing, with a through-hole mounting style and solder termination. The connector is fully shrouded with a 4-wall design and includes a detent lock fastening system for secure mating.
Rated for 5A current and 250V, this header operates over a temperature range of -55°C to 105°C. Contacts are made of copper alloy with tin plating (15.0µin thickness) and have a rectangular tab shape. The insulation is black thermoplastic, polyester, glass filled, rated UL94 V-0.
Designed for board-to-board or cable applications, the header includes a board lock feature for secure attachment to the PCB. The 2.5mm pitch and 3.75mm row spacing make it suitable for compact designs requiring reliable connections.
The pitch is 2.50mm (0.098").
It has 16 positions arranged in 2 rows.
The current rating is 5A.
The voltage rating is 250V.
It uses through-hole mounting with solder termination.
The operating temperature range is -55°C to 105°C.
The insulation is thermoplastic, polyester, glass filled with a UL94 V-0 flammability rating.
