| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,200 pcs
|
3200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

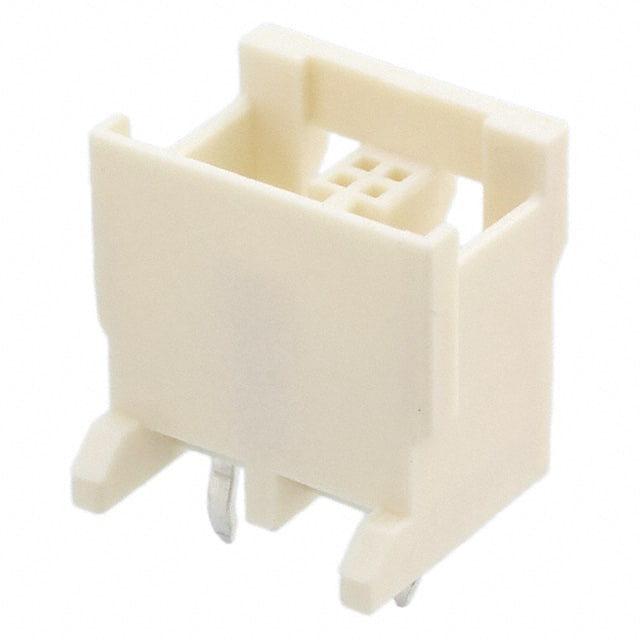

The TE Connectivity 1747067-2 is a 2-position, single-row, 2.50mm pitch vertical header connector designed for board-to-cable/wire applications. It features a 4-wall shrouded housing with a latch holder for secure mating and a board guide for accurate alignment during assembly.
This through-hole connector uses kinked pin solder termination with tin-plated brass contacts. The contact length is 3.00mm, and the insulation height is 11.30mm. The insulator is made of glass-filled polyamide (PA66/Nylon 6/6) in natural color and meets UL94 V-0 flammability rating.
Electrically, the connector is rated for 50V DC with current capacity varying by wire gauge. It operates reliably over a temperature range of -30°C to 105°C. The rectangular tab contacts ensure consistent electrical connection.
The compact 2.50mm pitch allows for space-efficient designs, and the solder tail configuration simplifies PCB assembly. This header is suitable for internal wiring harness connections in various electronic equipment.
2 positions in a single row.
2.50mm (0.098").
50V DC.
Through-hole mounting with kinked pin solder termination.
-30°C to 105°C.
Yes, it has a 4-wall shrouded housing with latch holder.
