| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,880 pcs
|
12880 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage | |
| Voltage Rating |

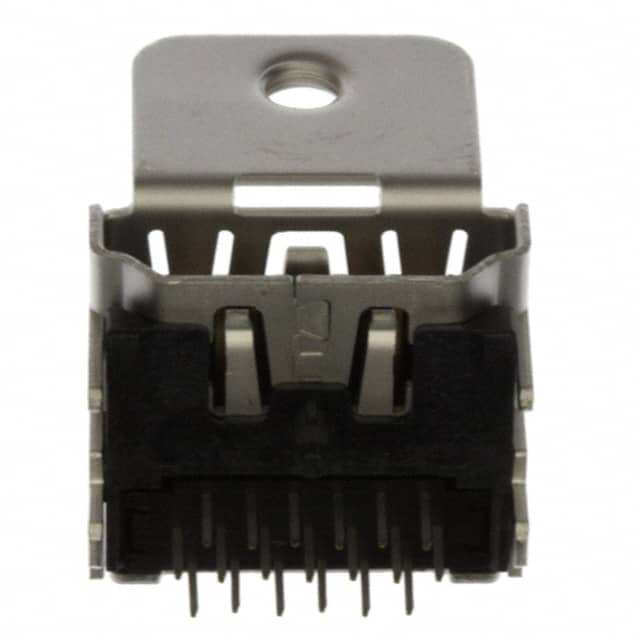

The TE Connectivity 1746679-1 is an HDMI receptacle connector designed for panel mount applications. It features 19 contacts in a right-angle orientation with a flange for secure mounting. The connector is rated for 0.5A current and 40VAC voltage, making it suitable for standard HDMI signal and power requirements.
This connector includes a board guide feature to assist with alignment during assembly. It supports up to 10,000 mating cycles, ensuring durability in frequent-use scenarios. The operating temperature range of -25°C to 70°C allows for use in a variety of environments.
The 1746679-1 uses solder termination and is designed for through-hole mounting. Its horizontal mounting feature enables low-profile integration into panels. The connector is RoHS compliant (unverified) and has an MSL of Level 1.
0.5A
40VAC
Panel Mount, Through Hole, Right Angle
-25°C to 70°C
10000 cycles
19
Yes, RoHS3 Compliant (unverified)
