| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

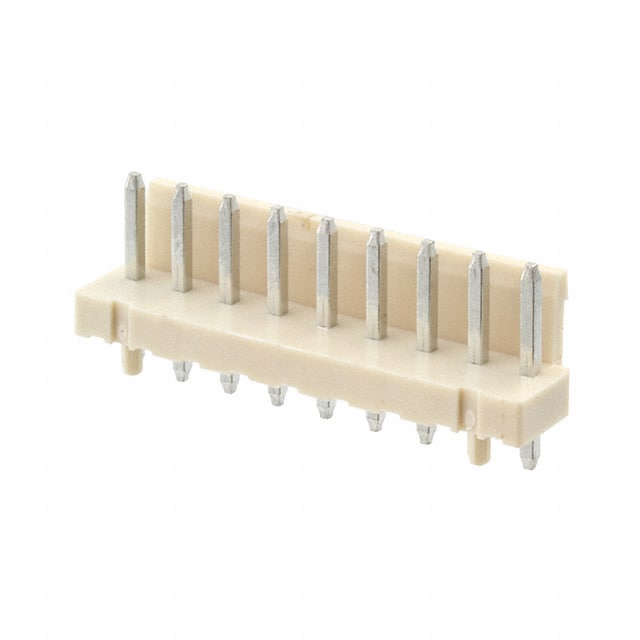

The TE Connectivity 1744429-9 is a single row, 9 position header with male pin contacts arranged on a 3.96mm pitch. This shrouded header with one wall uses a friction lock fastening system for secure board-to-cable/wire mating. It is designed for through hole mounting with solder termination.
The contacts are made of brass with a tin finish plated to 120 microinches, providing reliable conductivity and corrosion resistance. The insulator is natural polyamide (nylon) with a UL94 V-0 flammability rating and glow wire compliance. It includes a board guide feature for accurate alignment during assembly.
Electrical ratings are 7.5A current and 250VAC voltage, supporting medium power applications. Operating temperature range is -25°C to 105°C. The overall contact length is 14.60mm with a mating contact length of 7.70mm and an insulation height of 3.22mm.
9 positions in a single row.
3.96mm (0.156 inches).
7.5A.
250VAC.
Through hole with solder termination.
-25°C to 105°C.
UL94 V-0 with glow wire compliance.
