| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
130,000 pcs
|
130000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

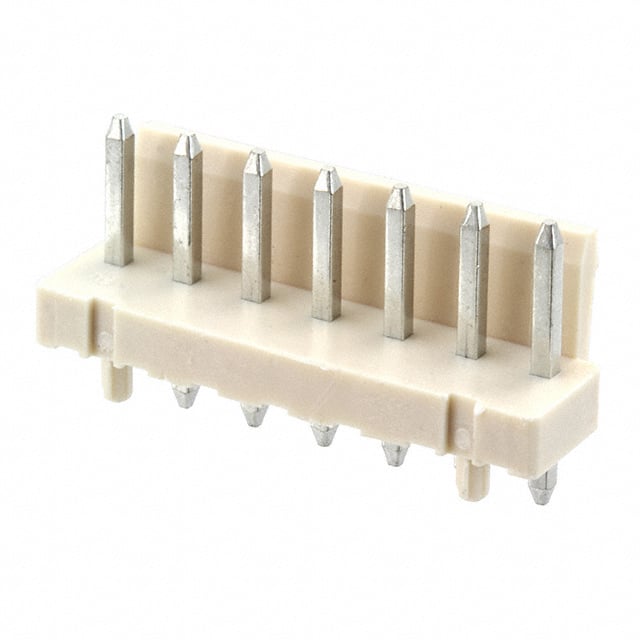

The TE Connectivity 1744429-7 is a 7-position, single-row header connector designed for board-to-cable/wire applications. It features a 3.96mm pitch and through hole mounting with solder termination. The header is shrouded with a single wall and includes a friction lock for secure mating. Contacts are male pins made of brass with a tin finish (3.05µm thickness). The insulation is natural polyamide (PA) nylon with a UL94 V-0 flammability rating. Electrical ratings include 7.5A current and 250VAC voltage. Operating temperature range is -25°C to 105°C. The connector includes a board guide and is glow wire compliant. All 7 positions are loaded. Overall contact length is 14.60mm with a contact length of 7.70mm and insulation height of 3.22mm.
This header is suitable for applications requiring reliable wire-to-board connections in industrial, automotive, and consumer electronics. The friction lock ensures retention against vibration. The glow wire compliance indicates suitability for high-temperature environments.
7 positions.
3.96mm.
7.5A.
250VAC.
Through hole.
-25°C to 105°C.
Tin with 3.05µm thickness.
