| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
131,000 pcs
|
131000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Package Type | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

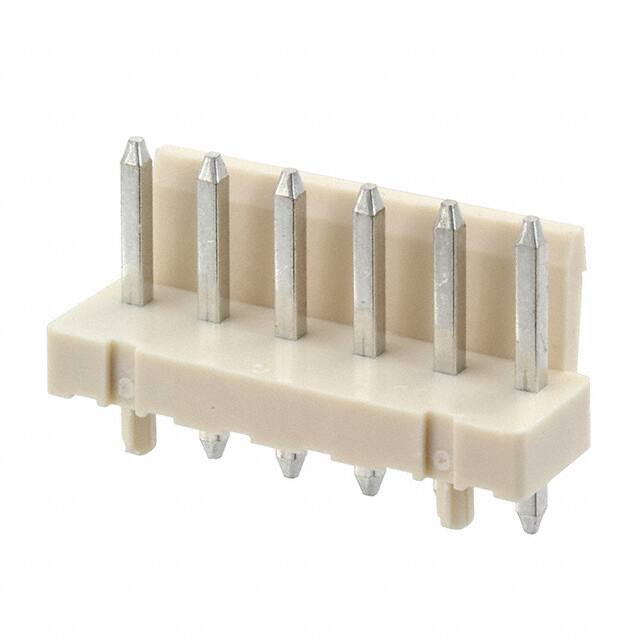

TE Connectivity 1744429-6 is a rectangular connector header designed for board-to-cable/wire applications. It features 6 male pin contacts arranged in a single row with a pitch of 3.96mm (0.156 inches). The header is through-hole mounted and terminated by solder. The housing is shrouded with one wall and includes a friction lock for secure mating.
The contact material is brass with a tin finish, having a thickness of 120µin (3.05µm). The insulation is made of polyamide (nylon) in natural color, with a flammability rating of UL94 V-0. The operating temperature range is -25°C to 105°C. Electrical ratings are 7.5A per contact and 250VAC. Additional features include a board guide and glow wire compliance.
This header is suitable for power and signal connections in various industrial, commercial, and appliance applications. The through-hole package provides reliable mechanical attachment to the PCB. The friction lock ensures the connector remains engaged under vibration.
6 positions in a single row.
3.96mm (0.156 inches).
7.5A per contact.
250VAC.
Through-hole with solder termination.
-25°C to 105°C.
