| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
114,000 pcs
|
114000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

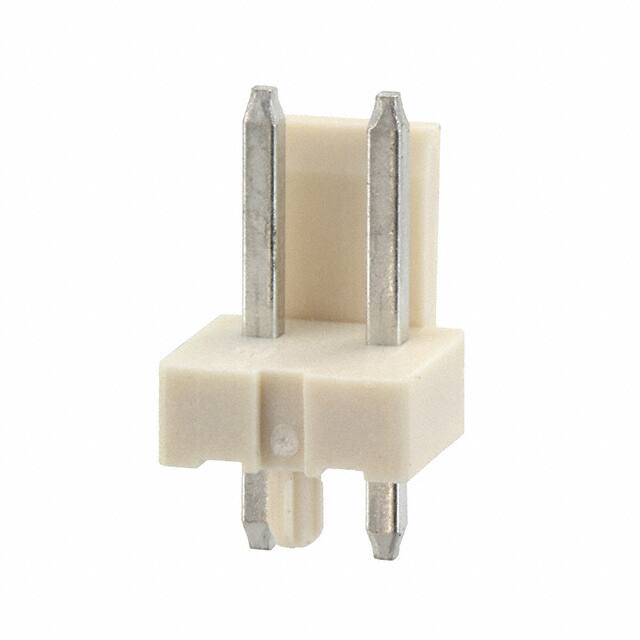

The TE Connectivity 1744429-2 is a 2-position, single-row header connector designed for board-to-cable/wire applications. It features a 3.96mm (0.156") pitch and through-hole mounting with solder termination.
The header is shrouded with one wall and includes a friction lock for secure mating. Contacts are made of brass with a tin finish (120µin thickness). The insulator is natural polyamide (nylon) with a UL94 V-0 flammability rating.
Electrical ratings include 7.5A current and 250VAC voltage. Operating temperature range is -25°C to 105°C. The part is glow wire compliant and includes a board guide feature.
This connector is suitable for power and signal connections in various applications. The through-hole design provides reliable mechanical attachment to the PCB.
2 positions.
3.96mm (0.156 inches).
7.5A.
250VAC.
Through hole.
-25°C to 105°C.
Tin, 120µin (3.05µm) thickness.
