| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

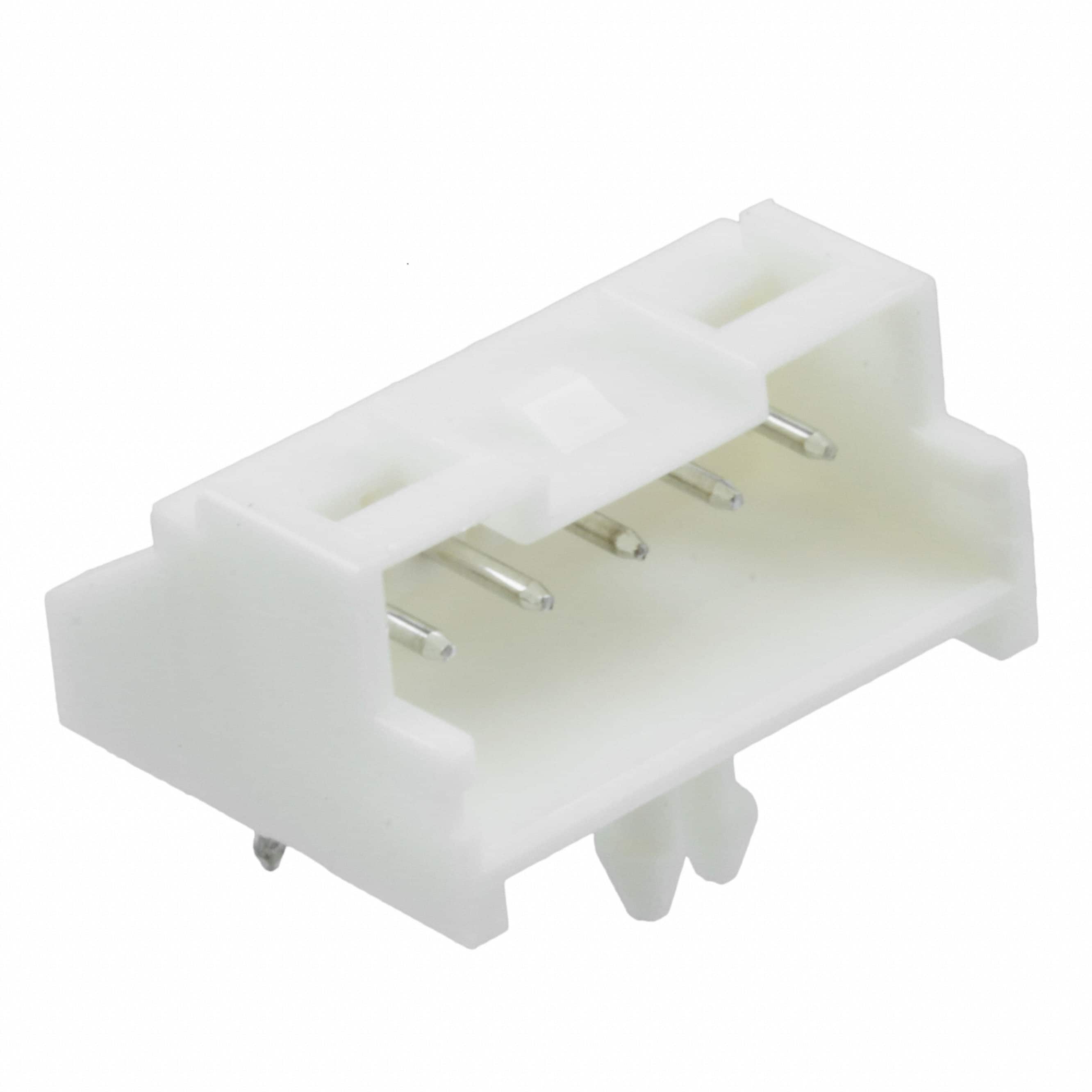

The 1744426-5 is a 5-position, single-row, right-angle header from TE Connectivity. It is designed for board-to-cable/wire applications and features a shrouded 4-wall housing for pin protection. The connector has a pitch of 2.50mm and uses male pin contacts made of copper alloy with a tin finish. The contact length is 3.60mm. The insulation is made of white polyamide (nylon) with a UL94 V-0 flammability rating, supporting operating temperatures from -55°C to 105°C.
The header is mounted via through-hole, right-angle termination with kinked pins for solder retention. It includes a friction lock fastening type and a board lock feature for secure attachment. The current rating is 4.2A and voltage rating is 250VAC. All 5 positions are loaded.
This header is suitable for applications requiring reliable connections in compact spaces. The 4-wall shrouding and friction lock provide mechanical security against accidental disconnection. The right-angle orientation allows for low-profile cable routing on the PCB edge.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.63 | $0.63 |
| 10+ | $0.53 | $0.53 |
| 25+ | $0.47 | $0.47 |
| 100+ | $0.45 | $0.45 |
| 250+ | $0.37 | $0.37 |
| 1,000+ | $0.36 | $0.36 |
| 2,500+ | $0.33 | $0.33 |
| 5,000+ | $0.32 | $0.32 |
| 8,000+ | $0.26 | $0.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This header has 5 positions.
The pitch is 2.50mm.
The current rating is 4.2A.
The voltage rating is 250VAC.
The mounting type is through hole, right angle.
The operating temperature range is -55°C to 105°C.
The fastening type is friction lock.
