| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
78 pcs
|
78 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Current Rating | |
| Mating Tab Thickness | |
| Mating Tab Width | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Sealed | |
| Terminal Style |

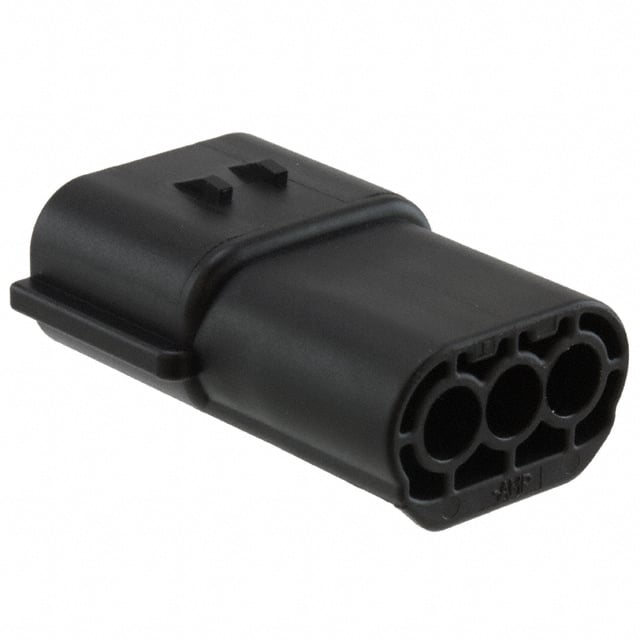

The TE Connectivity 174359-2 is a 3-position receptacle housing from the 070 Econoseal Mark II series. It is designed for use with 1.8mm x 0.64mm male pin contacts and uses a crimp termination method. The housing is sealed, making it suitable for applications where moisture and dust ingress must be minimized.
Key specifications include a single row layout with 4.80mm pitch, and a free hanging (in-line) mounting style. The operating temperature range is -30°C to 105°C, and the current rating is 0 to 24 A (low power). The housing is black in color and is made for use in automotive, truck, bus, and off-road vehicle wiring systems.
This connector housing is part of the Econoseal family, known for reliable performance in harsh environments. It is compatible with matching male pin terminals and is often used in engine control modules, sensor connections, and power distribution systems.
3 positions in a single row.
4.80mm (0.189 inches).
0 to 24 A (low power).
Free hanging (in-line) mounting.
Yes, the housing is sealed.
-30°C to 105°C.
Crimp termination for male pin contacts.
