| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,480 pcs
|
2480 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

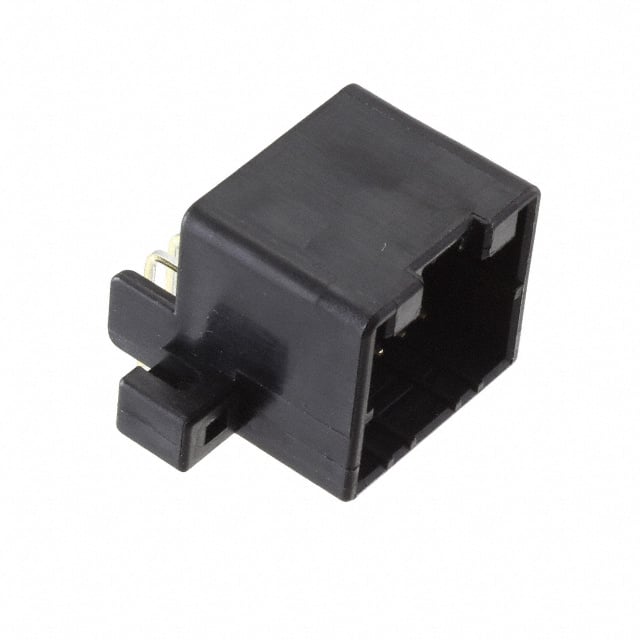

The TE Connectivity 174051-2 is a rectangular connector header designed for board-to-cable/wire applications. It features 12 positions arranged in 2 rows with a 2.5mm pitch and 5.2mm row spacing. The contacts are rectangular tabs made of brass with a tin finish, and the header is shrouded with a 4-wall design for robust mating.
This header is mounted through a right-angle orientation and soldered to the PCB. The insulation is made of polybutylene terephthalate (PBT) in black, with an insulation height of 16.71mm. A locking ramp fastening type ensures secure connection, and a mounting flange provides additional mechanical stability.
The contacts have a length of 7.00mm, and the operating temperature range is -30°C to 105°C. The current rating varies depending on the wire gauge used. This connector is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).
12 positions.
2.50mm (0.098 inches).
Through hole, right angle.
Varies depending on the wire gauge used.
-30°C to 105°C.
Polybutylene Terephthalate (PBT).
Tin.
